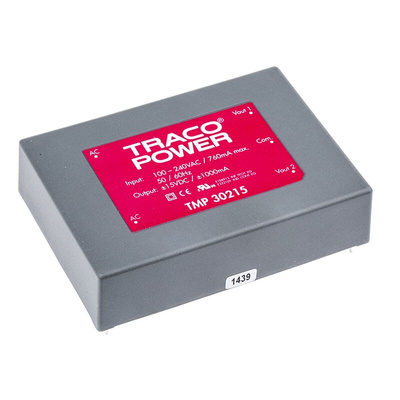

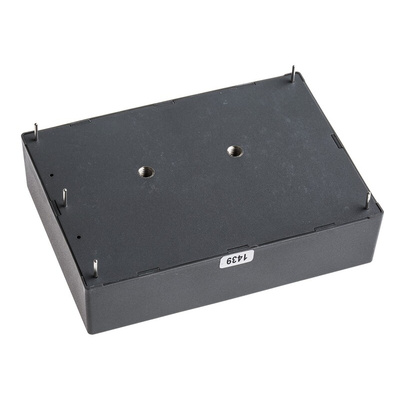

TRACOPOWER Switching Power Supply, TMP 30215, ±15V dc, 1A, 30W, Dual Output, 120 → 370 V dc, 85 → 264 V, Источник питания

Traco Power Switching Power Supply, Encapsulated Package, 80% Efficiency - TMP Series - TMP 30215

To get your industrial equipment running without a hitch, reach for this switching power supply from Traco Power. It takes variable AC or DC inputs and delivers 30W of power via dual outputs. As the unit's encapsulated, all its components are contained inside a sealed unit to keep them protected from contaminants in dusty industrial settings. Compact 63.5 (W) x 88.9 (L) x 21.5mm (D) dimensions mean this component is a useful solution for small setups. With a low weight of just 177g, it won't add too much strain to your equipment either, so it's ideal for handheld or mobile devices.

Features & Benefits

• Input range of 85 to 264V AC and 120 to 370 V DC for versatility
• Wide operating temperature range between -25°C and +60°C for reliable use in demanding conditions
• Overload, over-temperature and short-circuit protection is built in, to boost safety
• Straightforward PCB mounting style for quick installation

Applications

• Robotics systems
• Industrial automation
• Medical facilities
• IT networks

How efficient is this switching power supply?

The unit runs at 80% efficiency, so you can be sure minimal power is lost as heat during the switching process.
