TRACOPOWER Switching Power Supply, TMP 30212, ±12V dc, 1.3A, 30W, Dual Output, 120 → 370 V dc, 85 → 264 V, Источник питания

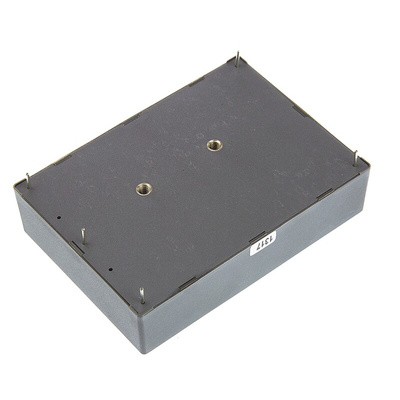

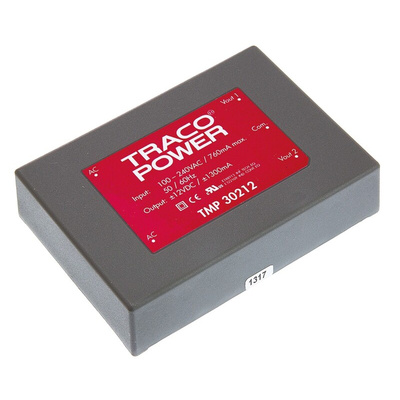

Traco Power Switching Power Supply, Fully Encapsulated, 250,000h MTBF - TMP Series - TMP 30212

Get the right juice flowing to your circuit using this switching power supply from Traco Power. It takes an input voltage range between 120 and 370V DC (or 85 and 264V AC) and brings it down to a stable output level of ±12V DC. Thanks to the unit's MTBF of more than 250,000 hours, it'll keep up with the demands of your machinery with little risk of breaking down. This robust device packs a triple threat against short circuits, overvoltage and overtemperature, shielding it from faulty current supply.

Features & Benefits

• Encapsulated structure helps keep it dust-tight
• Ambient operating temperature range between -25°C and +60°C to withstand harsh environments
• Dual output design for versatile power transmission

Applications

• Digital cameras
• Servers
• Games consoles
• Manufacturing industry

How efficient is this SMPS?

Thanks to its efficiency rating of 80%, this SMPS wastes little excess energy as heat, eliminating the need for a heat sink on your PCB.

How do I mount this component?

You can mount this power supply by soldering its pins directly to your board, ensuring a tight hold.

Switch Mode - Traco, TMP and TMPM Series

TMP 30212 Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TMP Series
