TRACOPOWER Switching Power Supply, TMP 30512, 5 V dc, ±12 V dc, 3 A, 600 mA, 30W, Triple Output, 120 → 370 V dc,, Источник питания

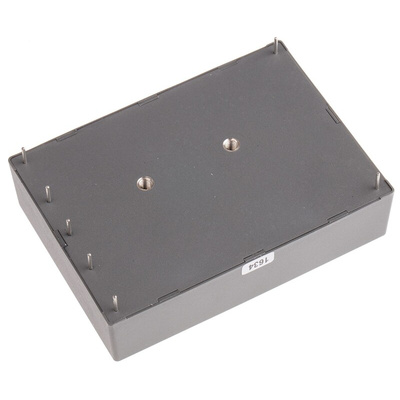

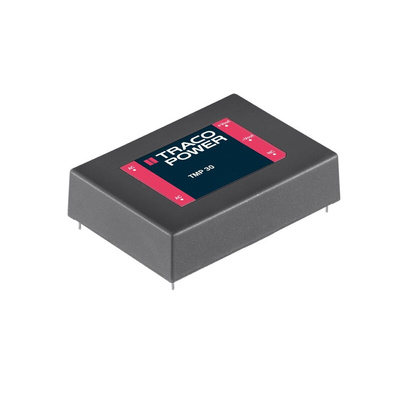

Traco Power Switching Power Supply, 211g Weight, 47 to 440Hz Input Frequency Range - TMP Series - TMP 30512

Get your PCB components up and running with this switching power supply from Traco Power. It has three outputs to drive multiple devices at once. The first delivers a steady 5V DC, while the other two give you ±12V DC. Thanks to its universal input voltage range, this is a versatile module that's ideal for most systems. It measures up at 63.5 (W) x 88.9 (L) x 21.7mm (H) so doesn't use much valuable board space.

Features & Benefits

• Performs without a hiccup in temperatures ranging from -25°C to +70°C
• Resin and fibreglass body is flame-resistant for fire safety
• Through-hole connection style simplifies installation and achieves a firm fix

Applications

• Electronics development
• Manufacturing facilities
• Telecommunications networks
• Security systems

What fuse should I use with this power supply?

To further protect your equipment, you can pair this component with a 3.5A slow-blow external input fuse.

How efficient is this device?

This product runs at 76% efficiency, meaning most of the energy it takes in is directly converted and little is lost as heat.
