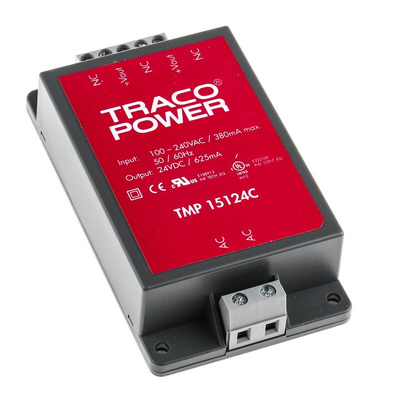

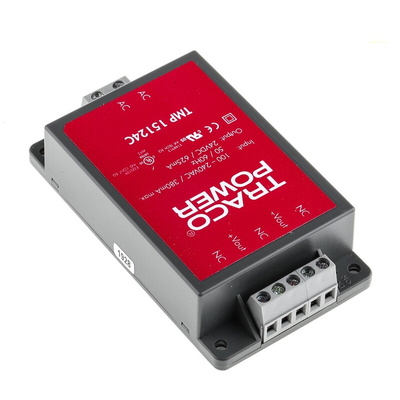

TRACOPOWER Switching Power Supply, TMP 15124C, 24V dc, 625mA, 15W, 1 Output, 120 → 370 V dc, 85 → 264 V, Источник питания

Traco Power Switching Power Supply, 162g Weight, Chassis Mounting - TMP Series - TMP 15124C

Need a smart switching device to convert AC input to DC output? Pick this switching power supply from Traco Power. It accepts input voltages ranging from 120 to 370V DC and 85 to 264V AC, converting them to a usable output voltage of 14V DC. As the unit's encapsulated, the internal components are shielded from dust and debris, so you can be sure of reliable performance. A 79% efficiency rating indicates this power supply minimises energy wastage during the switching process.

Features & Benefits

• Compact dimensions of 54 (W) x 96 (L) x 23.3mm (D) mean it fits easily into small setups
• Broad operating temperature range between -25°C and +60°C so it's suitable for harsh conditions
• Built-in protection against short circuits and overload, to boost safety
• Low weight of 162g means it won't strain your PCB

Applications

• Medical equipment
• Factory automation
• IT systems
• Telecommunications networks
• Home electronics projects

How do I mount this power supply?

You can mount this power supply by soldering it directly onto a PCB using the solder pins. It can also be chassis-mounted, which boosts airflow and cuts out the risk of overheating.

TMP 15124C Datasheet

Industrial Power Solutions Catalogue

Selection Guide
