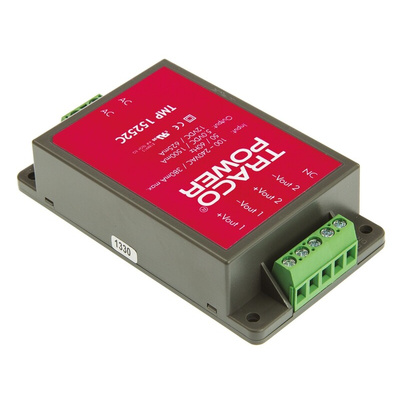

TRACOPOWER Switching Power Supply, TMP 15252C, 5 V dc, 12 V dc, 1.5 A, 625mA, 15W, Dual Output, 120 → 370 V dc,, Источник питания

6641483
Номер производителя: TMP 15252CПроизводитель: TRACOPOWER
Цена за шт.
19324.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

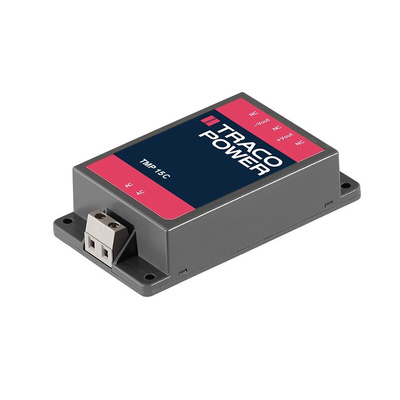

Traco 4W to 60W Low Profile Encapsulated AC/DC Power Supply - TMP and TMPM Series

4W to 60W low profile AC/DC encapsulated power supplies with ultra-compact casings. These AC/DC encapsulated power modules have universal inputs and are available with single, dual or triple outputs. There are two mounting options for these AC/DC power supplies; PCB mounting with solder pins or chassis mount with a screw terminal block connection. Typical applications for these encapsulated AC/DC power supplies includes spcae critical applications within commercial and industrial equipment.

Ultra compact and low profile design
Universal 85-264Vac input
Fully encapsulated offering protection against pollution and dust
Short circuit, overload and over temperature protection
3kVac input / output isolation
Protection Class II
EM Ccompliance to EN 55022, level B, FCC Part 15 level B

Note

Manufacturers part numbers with a 'C' suffix denote chassis mounting types.
Multi output models TMPM 042xx, TMP 1021x, TMP 1521x and TMP 3021x have a common ground. Other multi output models have output 1 isolated from output 2/3 (floating)
Optional DIN-Rail mounting adaptors for chassis mounting types (identified by a 'C' suffix within the manufacturers pt no) available separately, see stk nos 666-2786 & 666-2780
De-rate by 3.5% per °C above 50°C. for 'TMP 10' models
De-rate by 2.5% per °C above 40°C. for other models
MTBF to MIL-HDBK-217F (25 °C).

Standards

IEC/EN 60950-1, UL 60950-1, UL/cUL 508 (chassis mount single and symetric dual output models only)

Approvals

CB, UL recognised component for Canada & US

Traco Power Switching Power Supply, Chassis Mount, 15W - TMP 15252C

This dual output encapsulated power supply is a compact and efficient solution for various applications in automation, electronics, electrical, and mechanical industries. With a power rating of 15W, this power supply is both reliable and versatile, providing dual outputs of 5V and 12V DC. Its high efficiency and encapsulated design make it suitable for use in demanding industrial environments.

Features & Benefits

• Encapsulated design for protection against dust and pollution
• Dual outputs of 5V and 12V DC for versatile applications
• High efficiency for optimal performance
• Compact size for space-saving installation
• Chassis mount design for easy integration
• Reliable and durable for long-term use
• Suitable for industrial control equipment and automation applications

Applications

• Suitable for use in industrial control equipment
• Ideal for automation systems requiring dual power outputs
• Perfect for electronic equipment in harsh environments
• Versatile power supply for use in mechanical applications

Can it provide both 5V and 12V power outputs simultaneously?

Yes, the Traco Power TMP 15252C can provide dual outputs of 5V and 12V DC at the same time.

Is it suitable for use in industrial automation applications?

Yes, this power supply is designed for industrial control equipment and automation systems.

Will it operate efficiently in harsh environmental conditions?

Yes, it is encapsulated for protection against dust and pollution, making it suitable for harsh environments.

Switch Mode - Traco, TMP and TMPM Series

Техническая спецификация
pdfTMP 15252C Datasheet
pdfIndustrial Power Solutions Catalogue
pdfSelection Guide
Вес:
162гр
Встроенный:
Нет
Входное напряжение:
120 → 370 V dc, 85 → 264 V ac
Выходной ток:
1.5 A, 625mA
Глубина:
19.5мм
Длина:
96мм
Количество выходов:
2
Максимальная температура:
+60°C
Минимальная температура:
-25°C
Мощность номинальная:
15Вт
Напряжение выходное:
5 В пост. тока, 12 В пост. тока
Серия:
TMP
Тип монтажа:
Монтаж на шасси
Тип упаковки:
Encapsulated
Ширина:
54мм
Эффективность:
72%
