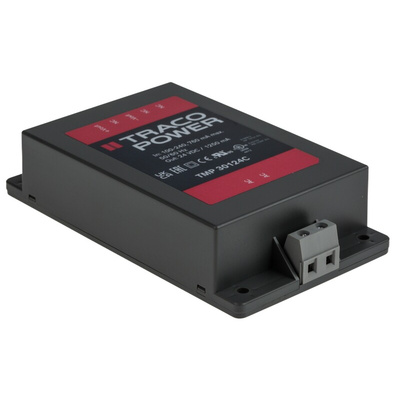

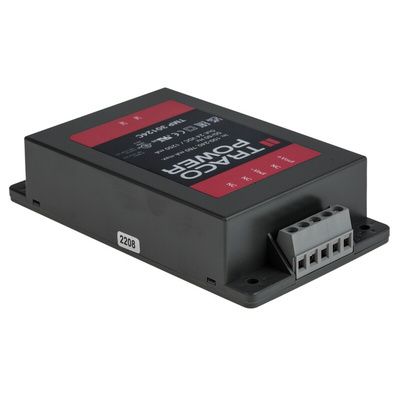

TRACOPOWER Switching Power Supply, TMP 30124C, 24V dc, 1.25A, 30W, 1 Output, 120 → 370 V dc, 85 → 264 V, Источник питания

Traco Power Switching Power Supply, 208g Weight, 1.25A Output Current - TMP-C Series - TMP 30124C

Need a quick and efficient way to smooth out voltages for your industrial equipment? Grab this switching power supply from Traco Power for the task. It accepts inputs of 120 to 370V DC or 85 to 264V AC and converts them into a glitch-free 24V DC output. This is a fast-acting device with a typical start-up time of only 400ms to get things moving quickly. Fire-retardant casing material self-extinguishes in under 10 seconds to save your supply from getting hot under the collar in the event of a fire. Getting set up is simple, as you just need to mount the unit directly onto your machine's chassis and connect it up using the screw terminal block.

Features & Benefits

• Mean time between failures of over 250,000 hours indicates long-term dependability
• 80% efficiency means energy waste is kept to a minimum
• Delivers reliable performance in temperatures between -25°C and +60°C

Applications

• Factory power supplies
• IT systems
• R&D laboratories

What size is this unit?

This product has compact dimensions of 112 (L) x 63.8 (W) x 25.6mm (D), so it's a space-efficient option for use in tight areas.

TMP 30124C Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TMP 30124C

Application Note -TMP 30(C) Series
