52105520 & 52032635, Lapp Nickel Plated Brass Cable Gland Kit, M25 Thread Size, 15.8 → 17.8mm Cable Diameter, Комплект вводов (сальников)

6644448
Номер производителя: 52105520 & 52032635Производитель: Lapp
Цена за 1 упаковку (5 шт)
47772.00 руб. (С НДС) *
Количество 5+ 10+
Цена 45381.00 руб. 42999.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

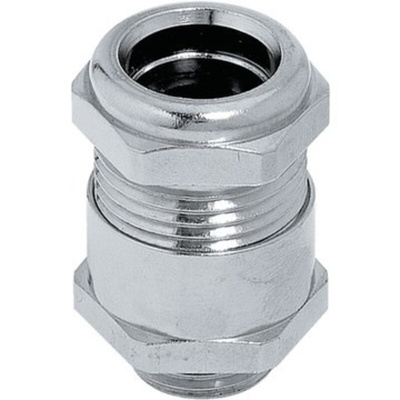

IP68 Metric Skintop® Demanding Applications Gland & Locknut Kit

From Lapp, the Skintop series of cable glands provides robust and reliable cable management in multicore calbe applications. With an internal sealing cone, the SHV-M-VITON gland can maintain a high degree of protection against environmental ingress, and is easy to install. These screw on cable glands also provide strain relief to prevent wear and tear on the cable connection.

The Skintop series of cable glands have a rugged nickel-plated brass body, and as such have a high degree of mechanical resistance, ensuring a reliable and durable connector solution for demanding environments.

Features and Benefits

• Provides Strain Relief to Connecting Wire
• Protection Rating of IP68 and 10 bar
• Robust, Durable Construction
• Operating Temperature of -15°C to +200°C
• Metric Thread Sizes

Applications

Skintop cable gland kits can be used with junction boxes and machinery in various demanding applications, such as:

• Brickworks
• Sewage Treatment Plants
• Commercial Car Wash

Environment

These glands provide environmental protection up to IP68, which is highly resistant to dust ingress and waterproof even in shallow submersion.

As these glands provide a waterproof seal and are highly temperature and pressure resistant, they are ideal for harsh industrial environments and even some open air applications.

They also have excellent resistant to oils, solvents, chemicals and acids.

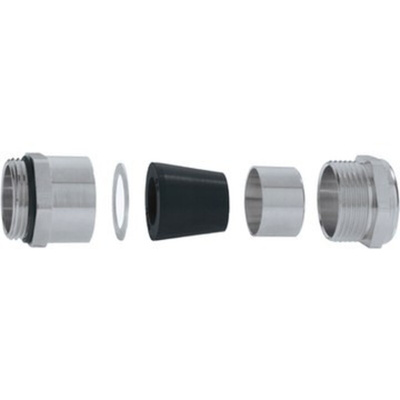

Components

• Gland body - nickel plated brass
• Cap - nickel plated brass
• Sealing cone - elastomere (FKM)
• Pressure cone - nickel plated brass
• Washer - galvanized steel
• O Ring - elastomere (FKM)

Standards

EN50262

Техническая спецификация
pdfSKINDICHT CN-M Cable Gland Data Sheet
Количество ядер:
1
Комплект включает в себя:
Brass Cone, Compression Screw, Gland, Lock Nuts, Sealing Cone, Washer
Максимальный диаметр кабеля:
17.8мм
Материал:
Никелированная латунь
Минимальный диаметр кабеля:
15.8мм
Рабочая температура - максимальная:
+200°C
Рабочая температура - минимальная:
-15°C
Размер резьбы:
M25
Степень защиты IP:
IP68
