52107820 & 52103020, Lapp SKINDICHT Series Metallic Die Cast Zinc Cable Gland, M20 Thread, 4mm Min, 13mm Max, IP55, Кабельный ввод

Lapp Skintop RWV-M Cable Gland with Locknut, IP55

From Lapp Group, the Skintop range of cable glands are ideal for protecting and managing your cable installation. With an excellent resistance to chemical contact and mechanical impact, this angled cable gland is ideal for when cables need to be run in parallel with a wall.

The Skintop RWV-M cable gland includes a lock nut which enables it to be secured in any position, and features a sealing ring for extra protection against the elements.

Constructed from diecast-zinc and nickel-plated brass, this high quality Lapp cable gland offers security and versatility in your wiring and cable management.

Features and Benefits

• Corrosion Resistant
• Sea Water Resistant
• Impact Resistant
• Temperature Resistant

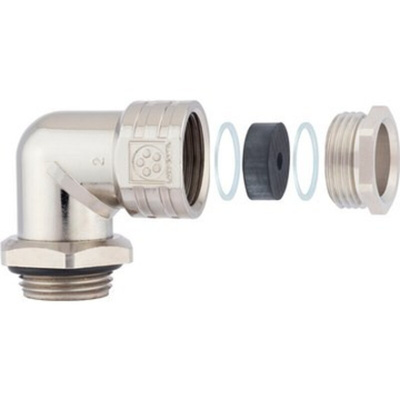

• Sealed by Incised Sealing Ring
• Strain Relief
• Metric Thread Size

Applications

The versatility of this cable gland ensures it can be used in high demand industrial and electrical applications. It is commonly used in plant engineering, automation, machine manufacturing, and all applications where robust cable management is required.

Environment

With a sturdy construction and excellent sealing, this Skintop cable gland has a protection level of IP55. This makes it resistant to limited dust ingress, and protected from low pressure water jets. Combined with its resistance against corrosion and temperature, it is suitable for use in many outdoor and harsh environments.

Standards

EN 60423

Supplied with

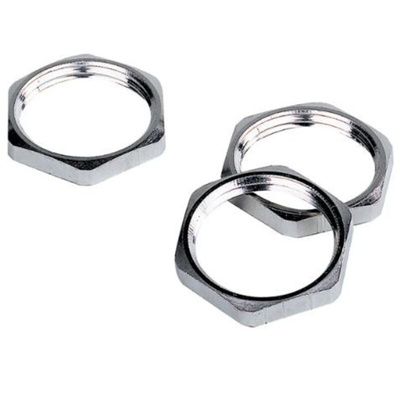

Lock Nut

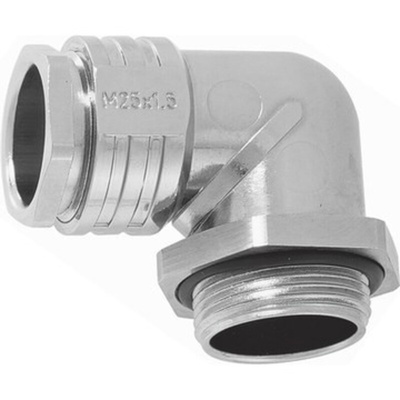

LAPP Cable Gland, Angled Shape, 35.1mm Length - SKINDICHT Series - 52107820 & 52103020

Looking for a reliable way to protect your industrial system's cabling? This cable gland from LAPP secures connectors to your equipment and provides strain relief, preventing damage caused by twisting, impacts or rough handling. To minimise the risk of accidental disconnection, it comes with a locknut to screw it firmly in place. By supporting cable sizes between 4 and 13mm, the gland is widely compatible with commonly used wiring.

• Angled shape to support cabling running alongside a wall
• Screw connection for fast mounting without tools
• IP55 rating indicates resistance to dust and low-pressure water jets for use in demanding settings
• Supplied in packs of 10 for convenience

Applications

• Renewable energy installations
• Workshops and garages
• Material handling equipment

Is this cable gland resistant to corrosion?

Yes, the component's die-cast zinc body resists corrosion and salt water, so you can use it in harsh settings.

Datasheet

Datasheet

Cable Gland Selection Chart

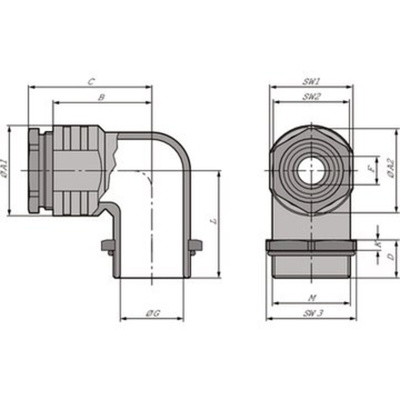

Line Drawing - 5210 Series
