52106210 & 53119010, Lapp SKINDICHT Series Grey Glass Fibre Reinforced, Polyamide Cable Gland, M16 Thread, IP55, Кабельный ввод

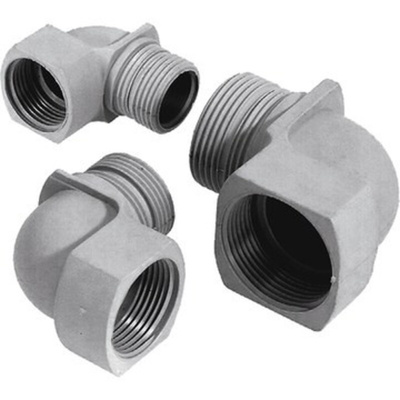

Lapp IP55 Metric Skintop KW-M 90° Elbow Cable Glands

From Lapp, this Skindicht KW-M series of cable glands are a space-saving solution to cable management. Their right angle orientation means they are ideal for when cables run parallel to a housing wall, or when a low installation height is required.

With a tough glass-filled polyamide construction, the cable glands are also light weight and offer a degree of environmental protection.

Supplied with a lock nut, the Skindicht KW-M series of cable glands assure a quick and secure fitting in any position.

Features and Benefits

• Right Angle Orientation
• Space and Weight Saving Design
• Decrease in Installation Height
• IP55 Protected
• Operating temperature range from -20°C to +100°C

Applications

These elbow cable glands present a versatile cable management solution in;
• Control Cabinet Manufacturing
• Light and Sound Applications
• Ideal for Thin Cable Diameters

Environment

These cable glands seal to IP55, which means they offer good protection again dust and particle ingress, and a moderate protection against liquid. This means they are suitable for most indoor applications.

Features and Benefits

Decrease in installation height
Operating temperature range from -20°C to +100°C
Various thread sizes available from M16 to M32

Typical Applications

Light and sound applications
Control cabinet manufacturing

Standards

EN50262

Supplied with

Lock Nut

LAPP Cable Gland, Right-Angle Orientation, Glass Fibre-Reinforced PA Material - SKINDICHT Series - 52106210 & 53119010

For cable protection that doesn't need much elbow room, try this LAPP cable gland. Its right-angle orientation makes it a sure fit for confined setups. The glass fibre-reinforced PA construction provides resistance to heat, UV light and chemicals, making it a good match for demanding industrial settings. As the cable gland comes with a locknut, you can install it securely in a jiffy.

Features & Benefits

• IP55 rating means it's protected against limited amounts of dust and water sprays
• Suitable for use in extreme locations, thanks to a wide operating temperature range between -20°C and +80°C

Applications

• Lighting management
• Process control
• Water systems
• Pharmaceutical manufacturing

What tools do I need to mount this cable gland?

For quick and convenient installation, all you need is a spanner.

LAPP_PRO998_Datasheet

Datasheet

Cable Gland Selection Chart
