52104575, Lapp Cable Gland Adaptor, M50 Exterior Thread, M40 Interior Thread, Nickel Plated Brass, SKINDICHT Series, Переходник

Skintop ATEX (Ex) Nickel Plated Brass Reducers - Metric

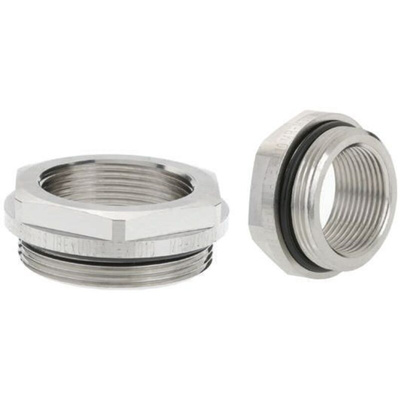

From Lapp, this Skindicht ME-M reducer allows cable glands to adapt to threaded holes that are too large for their connecting thread. Rather than boring new holes in panels, a reducer can be used to accommodate your cable gland size, potentially saving you time and money. This presents added versatility when terminating and sealing cable into electrical equipment, enclosures and conduit.

With a robust nickel plated brass construction, these reducers are also ATEX approved. They also feature a nitrile rubber o-ring that ensures effective environmental sealing, with a guide notch for proper placement.
A wrench is required for secure assembly.

Features and Benefits

• ATEX Approved
• IP68 Protection
• Adapt Threaded Bore Hole to Cable Gland Thread
• Robust Construction
• Reliable
• Space Saving Design
• Operating Temperature -30°C to +90°C


Applications

The thread reducers can be used with cable glands in a variety of applications, and are ATEX approved for Equipment group II / Category 2G+1D in environments where explosion is a risk.

• Petrochemical Industry
• Offshore and Marine
• Construction

Additional Sizes

• 664-4583 is a M16 to M12 ATEX Reducer
• 664-4586 is a M20 to M16 ATEX Reducer
• 664-4580 is a M25 to M20 ATEX Reducer
• 664-4599 is a M32 to M25 ATEX Reducer
• 664-4592 is a M40 to M32 ATEX Reducer
• 664-4596 is a M50 to M40 ATEX Reducer

Accessories

Lapp provide a handy cable gland wrench set to assist in cable gland removal.

• 458-3947 is a Spanner set for M12, M16, M20, M32 and M40 glands

Group and Category

II 2G/1D

Certificate No.

IBExU 03 ATEX 1011

LAPP Cable Gland Adaptor, IP68 Rating, Reducer Type - SKINDICHT Series - 52104575

When you have a connection mismatch, this cable gland adaptor from LAPP makes up the difference. Its M50 exterior and M40 interior thread sizes provide a secure fit between the cable gland and fixture. This saves you the time and effort of drilling a new hole into your electrical equipment, panel or enclosure. The product's robust nickel-plated brass construction stands up to wear and corrosion for use in harsh environments.

Features & Benefits

• Nitrile rubber O-ring provides a tight seal against environmental hazards
• Guide notch for accurate positioning
• IP68 rating indicates protection from dust and water submersion
• Performs reliably in a broad operating temperature range between -30°C and +90°C

Applications

• Offshore and marine engineering
• Building and construction sites
• Petrochemical manufacturing

What tools do I need to assemble this cable gland adaptor?

You can fit this component in place using a compatible cable gland wrench.

Datasheet

Instruction Sheet - 52104575
