5810160033, Cinch, ModICE Automotive Connector

ModICE® Enclosures

Ideal for designs in the commercial vehicle market where mounting areas on a vehicle are exposed to harsh environments. Available in 3 sizes LE (large), ME (Mini) and SE (Small).

Features and Benefits

• Snap-fit design
• Heatsink and vented options
• Housings – Glass filled polymer
• Pins – Brass – Post tin plated
• Seals – Silicone elastomer

Available in this range:
581 01 30 043 SE with no heatsinks- 664-7220
581 01 60 033 LE with no heatsinks – 664-7236
581 01 60 039 LE with no heatsinks and membrane vent – 885-7071
581 01 30 059 SE with no heatsinks and membrane vent – 885-7078

PCB – Board Size (approximately)
ME – 4.08 x 3.35" (103 x 85 mm)
SE – 4.50 x 4.60" (114 x 117 mm)
LE – 6.00 x 6.10" (152 x 155 mm)

Note

For Modice headers see typically stock no 664-7185 . For Spring Plates see stock no's 664-7242 and 664-7251

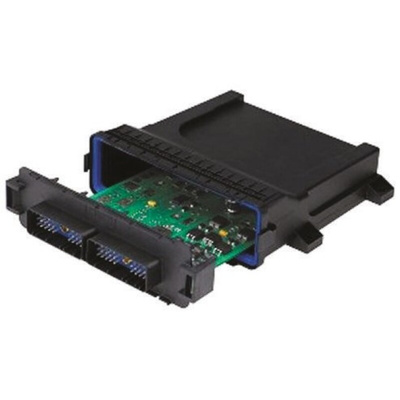

Modular Integrated Connector Enclosure

Cinch's Modular Integrated Connector Enclosures offer high quality sealed packaging solutions for rugged electronic control module applications. The ModICE product line consists of two distinct enclosure sizes and 6 header configurations allowing 18, 30, 48 and 60 I/O mating to Cinch's SHS harness connectors.

Snap-in header simplifies module assembly
Options include ferrite filtering and integrated heat sink
Resistant to most fluids used in industrial applications
Enclosure and Headers manufactured from glass filled polymer
Sealing rated at IP65, IP66, IP67 and IP69K

Enclosure Assembly Modice LE Drawing

Modular Intergrated Connector Enclosures Brochure
