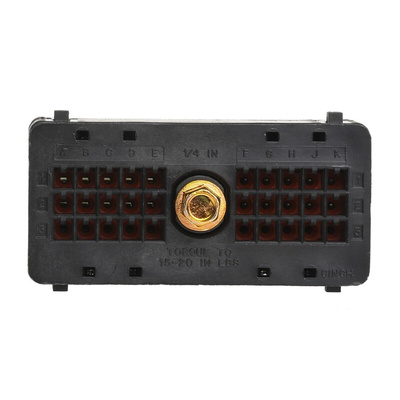

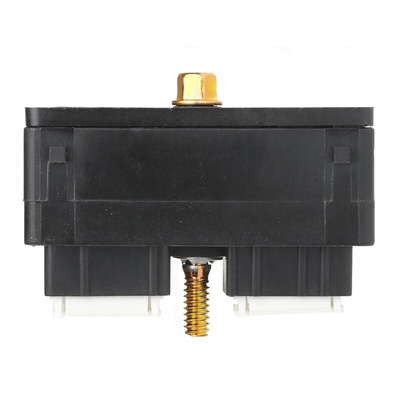

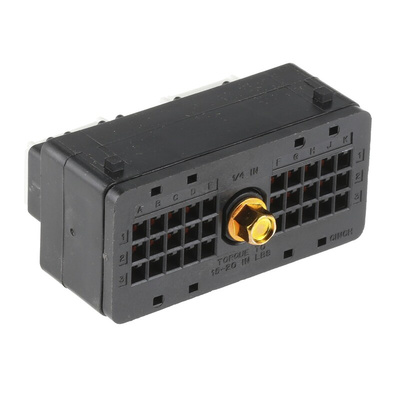

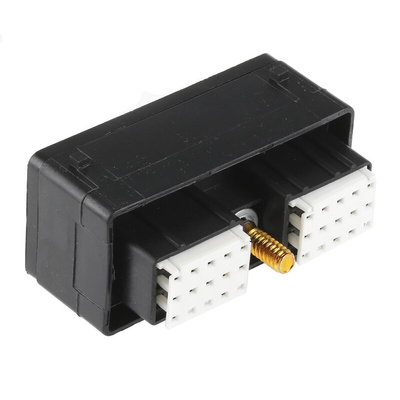

5810130029, Cinch, Modice Automotive Connector Socket 30 Way, Crimp Termination

Modice Harness Connectors

Sealed header system harness connectors

Integral secondary lock
Protected grommet wire seal
Threaded jackscrew mating

Note

For suitable terminals see stock no's 664-7260 (0.5-0.8mm) and 664-7264 (0.8-1.0mm). For Terminal Cavity Plug see stock no 664-7295 . For tooling see stock no's 664-7270 (Removal Tool); 664-7289 (Secondary Lock); 664-7273 and 664-7276 (Crimp Tools)

Modular Integrated Connector Enclosure

Cinch's Modular Integrated Connector Enclosures offer high quality sealed packaging solutions for rugged electronic control module applications. The ModICE product line consists of two distinct enclosure sizes and 6 header configurations allowing 18, 30, 48 and 60 I/O mating to Cinch's SHS harness connectors.

Snap-in header simplifies module assembly
Options include ferrite filtering and integrated heat sink
Resistant to most fluids used in industrial applications
Enclosure and Headers manufactured from glass filled polymer
Sealing rated at IP65, IP66, IP67 and IP69K

30 Way Connector Assembly Drawing
