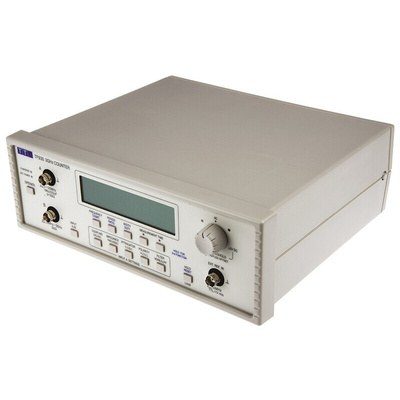

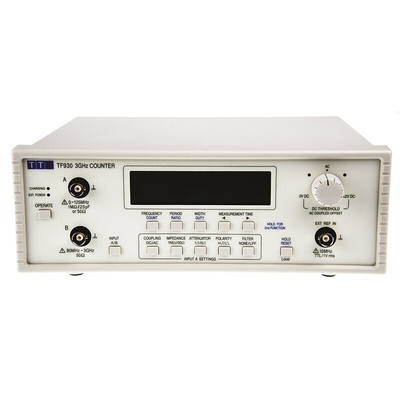

Aim-TTi TF930 Frequency Counter, 0.001 Hz Min, 3GHz Max, 10 Digit Resolution, Частотомер

Aim-TTi TF930 - 3GHz Universal Frequency Counter

Frequency, period, pulse width, frequency ratio duty cycle, and event counter modes
DC to 3000MHz range, 0.001mHz resolution
High impedance measurement up to 125 MHz
AC or DC coupling, 1M/50Ohm selection, polarity invert
Switchable attenuator, threshold control
Noise filter for low frequency measurements
Selectable measurement time; display hold function
Large 9 digit display with full range of annunciators
Internal rechargeable batteries for portable use
USB interface provides full remote control and readback

Aim-TTi Frequency Counter

The Aim-TTi frequency counter is a 3GHz, universal benchtop, portable instrument with the USB interface device. This frequency counter can measure frequency, period, pulse width, duty cycle and frequency ratio, as well as perform event counting. It has a USB interface that allows it to be remotely controlled using RS232 protocol via a computer’s USB port. It can also be charged through the USB interface. This frequency counter has 10digit resolution and pulse width resolution is 20ns.

Features and Benefits

High impedance measurement up to 125MHz
AC or DC coupling, 1M/50Ohms selection, polarity invert
Switchable attenuator and threshold control
Noise filter for low frequency measurements
Selectable measurement time and display hold function
Large 10-digit display with full range of annunciators
Internal rechargeable batteries for portable use
USB interface provides full remote control and read back

Applications

Data communication
Embedded systems
RF and microwaves
Laboratories

Certifications

EN61010-1
EN61326
