TRACOPOWER Switching Power Supply, TEX 120-112, 12V dc, 8A, 96W, 1 Output, 85 → 264 V ac, 85 → 375 V dc, Источник питания

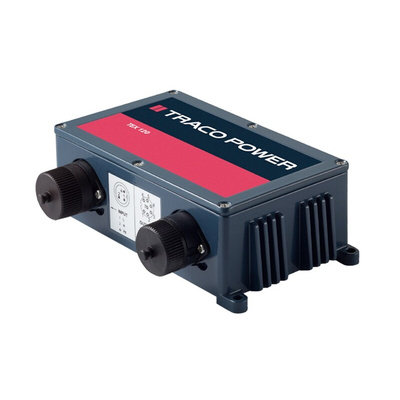

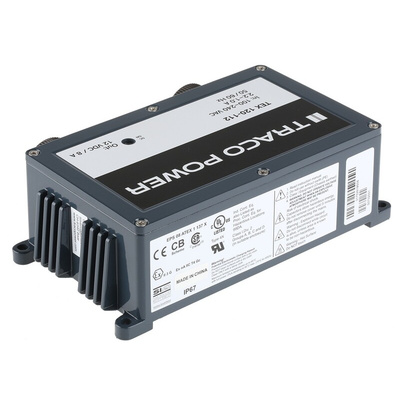

Traco Power Switching Power Supply, Chassis Mounting, Isolated Type - TEX 120 Series - TEX 120-112

Need to convert energy in challenging conditions? Trust this switching power supply from Traco Power. It's a hardy device that turns inputs between 85 and 264V AC into a stable 12V DC output with an 8A current. You can depend on it in harsh work areas, like factories, thanks to its -40°C to +85°C operating temperature range. With a 3,000V DC isolation voltage, it also holds its own against brief electrical surges.

Features & Benefits

• Compact size of 174 (L) x 93 (W) x 56mm (D), so it's a space-saving component
• High efficiency of 87% to minimise energy wasted as heat
• Also accepts inputs of 85 to 375V DC for broad functionality
• Rugged die-cast aluminium housing is durable, ensuring the unit stands the test of time
• Complies with the EN 62368-1 safety standard for energy sources, limiting the risk of injuries and equipment damage

Applications

• Renewable energy sector
• Lighting networks
• Data centres
• Food production

What IP rating does this power supply have?

It has an IP67 rating, so it's dust-tight and resists water damage even when immersed in depths of up to 1m.

Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TEX 120-112
