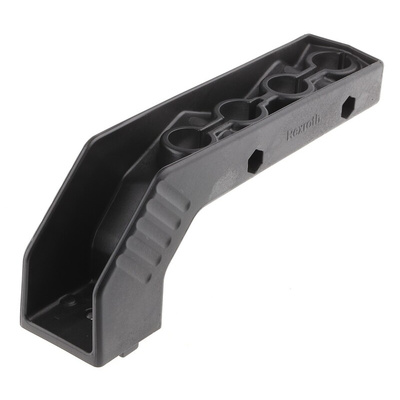

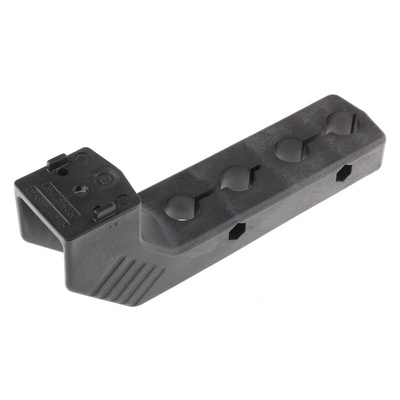

3 842 539 494, Bosch Rexroth Guide Rail Bracket, 204mm Length x 45mm Width x 76mm Height

Bosch Rexroth Guide Rail Bracket, Stainless Steel Fasteners, 4 Holes - MGE Series - 3 842 539 494

Keep materials moving in the right direction with the help of this Bosch Rexroth guide rail bracket. Used as part of a lateral guide-rail system, it gives sturdy support to clamps and holders. The unit comes with all fasteners included to make set-up a breeze. Simply screw it into a spacer using the supplied fastener before popping it onto your profile rail. Thanks to four built-in slots for clamping heads, it's easy to adjust the height.

Features & Benefits

• Robust polyamide material supports a long service life by resisting wear and tear
• Compact dimensions of 76 (H) x 45 (W) x 204mm (L) fits neatly into conveying systems

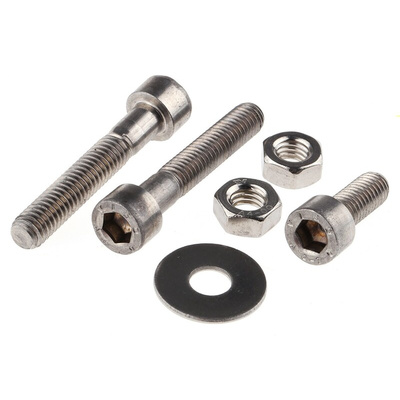

• Stainless steel fasteners stand up to corrosion even in humid industrial conditions

Applications

• Sorting lines
• Pharmaceutical manufacturing
• Factory automation

How much does this unit weigh?

The bracket's low weight of 171g puts minimal pressure on your system.

Lateral Guides - Adjustable

Lateral guide rail system designed for use with conveyors to help transport products. This unique system enables end user customisation to suit most conveying applications.

Profile rails and slide rails in various designs for optimum adjustment to transport material
Holder with two or four holes for supporting clamping pieces at various heights
Suitable for VarioFlow, VarioFlow S aluminium, VarioFlow S STS and many other systems
