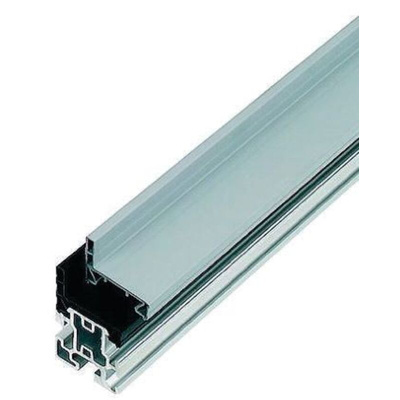

3 842 993 029/3000, Bosch Rexroth Profile Rail, 3000mm Length x 45mm Width x 45mm Height

Bosch Rexroth Profile Rail, 3m Length, EcoFlow Type - MGE Series - 3 842 993 029/3000

For a workstation that goes with the flow, try out this profile rail from Bosch Rexroth. It fits into the modular EcoFlow system of linking conveyor elements and reliably guides materials into the right place as they roll down the line. A simple clip-in fixing style ensures easy installation alongside rollers, stop gates and conveyor components. The anodised aluminium construction means it boosts efficiency by resisting wear and tear over time.

Features & Benefits

• Corrosion-resistant, so suitable for use in harsh and humid industrial conditions
• Light weight of 1.7kg/m means it puts minimal strain on your system

Applications

• Automated production lines
• Distribution systems
• Warehouses

What are this profile rail's dimensions?

The rail is 3 meters long and has open-ended slots at either end measuring 45 (H) x 45mm (W) for a secure fit with supporting clamps and plugs.

Ecoflow Conveyor Tracks

Conveyor tracks based on alumuminium profiles with uniform rollers made of plastic and steel. For fast, simple construction of conveyor or manual slide sections. Can be used in conjunction with Bosch Rexroth Mechanical components.

Datasheet

Catalogue - Basic Mechanic Elements
