RS PRO Constant Wattage, Parallel Circuit Trace Heating Kit, 40W/m, 240V ac, -60 → +200 °C, 100m, Комплект для обогрева

RS PRO Parallel Circuit Heating Tape for Frost Protection

7581600

Features and Benefits:

Cut to length - the outer sheath is notched on alternate sides at 1 metre intervals to indicate cutting points
Flexible - can be wrapped around pipes
Various lengths available - 20m, 50m or 100m
Voltage ratings either 110 V or 240 V
Constant wattage heating cables

Typical Applications:

Trace heating cables are electric heating elements designed to provide focused and controllable heat used to prevent pipes, outdoor taps and gutters from freezing, or to maintain a desired temperature on pipes to keep liquids moving.
· For use for internal or external temperature maintenance applications
· Freeze protection
· Water, oil and chemical lines
· Sprinkler system mains
· Supply piping
· Not for use in hazardous areas

FAQs
When is trace heating required?
Trace heating cable systems are ideal for protecting pipes from freezing, maintaining the temperature of a hot water system and maintaining process temperatures for smooth and efficient running of process plant equipment.

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

BS EN 62395-1:2006

RS PRO 40W/m Trace Heating Kit Constant Wattage, Parallel Circuit, 240 V, 50 m

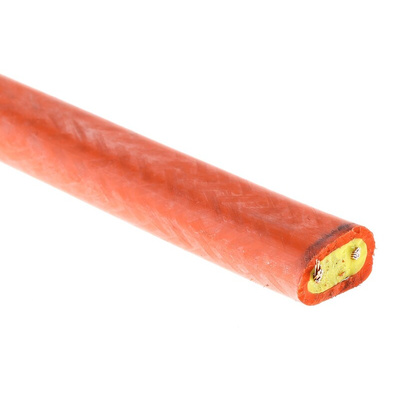

This parallel circuit heating tape from the RS PRO range delivers a constant wattage output for process temperature maintenance applications. The tape is flexible enough to be spiralled around a suitable pipe or vessel.

Sheathed in durable and insulating silicone rubber, the cable supports an outstanding thermal range and can be safely used between -60˚C and +200˚C. It's surrounded by an earth screen braid to shield the conductor from electrostatic interference while maintaining its flexibility.

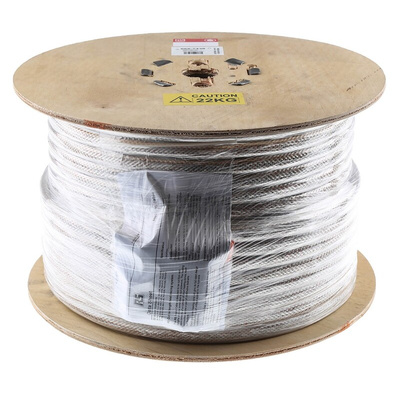

The tape delivers an output of 40 W per metre and is available in 50-metre lengths. The outer sheath is notched at one-metre intervals to indicate cutting points.

Commonly used in both indoor and outdoor installations, applications include freeze protection and sprinkler systems as well as mains and supply piping.

This cable has been tested against international standards for electrical resistance trace heating systems (BS EN 62395-1:2006). It's not suitable for use in hazardous areas.

Features and Benefits

• Parallel circuit heating tape
• Output per metre of 40 W
• Voltage rating of 240 V
• 50-metre reel
• Sheathed in silicone rubber to enable usage in the temperature range of -60˚C to +200˚C
• BS EN 62395-1:2006 compliant, ensuring it meets recommended specifications for electrical resistance trace heating systems.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
