RS PRO Trace Heating Thermostat 75mm x 200mm x 150mm, 0 → +90 °C

RS PRO Trace Heating Thermostat 75 mm x 200 mm x 150 mm, 0°C → +90 °C

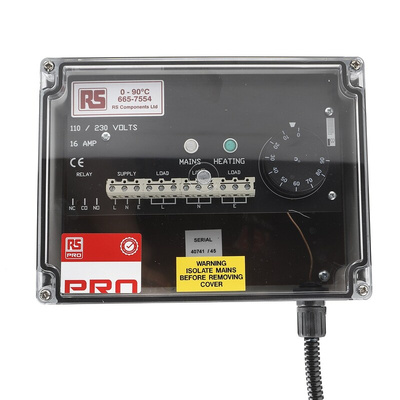

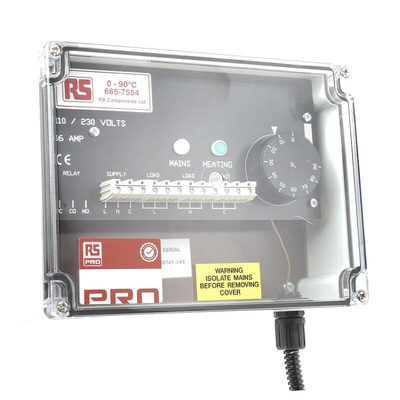

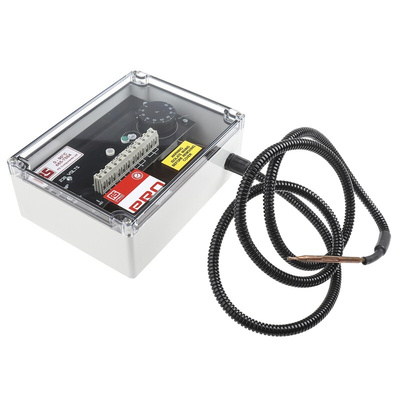

Looking for a junction box thermostat to terminate and control a heating system? This trace heating thermostat from the RS PRO range is commonly used for frost protection or process temperature maintenance. It features entries and terminations for up to three trace heating circuits, along with an easily adjustable temperature range dial that clearly displays the set temperature. Indicating lamps show when the mains and the heat are on for easy system management.

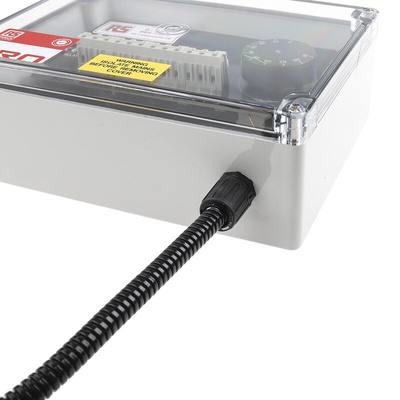

The thermostat's body is made from tough ABS (acrylonitrile butadiene styrene) thermoplastic, with a clear moulded polycarbonate lid. It measures 75 mm x 200 mm x 150 mm and will operate between 0˚C and +90˚C. Its IP65 rating means it's also dust and spray-tight.

A stainless steel pipe mounting bracket kit with mounting screws, washers, nuts and banding kit is available separately. The thermostat meets standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge.

Features and Benefits

• Trace heating thermostat
• Junction box style
• Commonly used for frost protection or process temperature maintenance
• Entries and terminations for up to three trace heating circuits
• Easily adjustable, high-visibility dial
• Indicator lamps for easy system management
• Measures 75 mm x 200 mm x 150 mm
• IP65 rated meaning it's dust protected and spray-tight
• Minimum operating temperature of 0°C
• Maximum operating temperature of +90°C
• Meets standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge
