Phoenix Contact STEP POWER Single Phase Power Supplies (PSU)

The single-phase STEP POWER generation of compact power supply units from Phoenix Contact have a high degree of efficiency and the low standby losses make for high power efficiency. The PSU’s are available with 24 V DC output voltage in various performance classes and overall widths as well as special voltages 5, 12, 15, and 48 V DC.

These PSU's (Power supply units) have been designed more specifically for building automation, however, are not limited to explicitly that use. Low idling and maximum efficiency help to achieve higher energy efficiency. Not to mention, these power supplies have a DIN rail notch took out of the housing to allow you effortless install, on a DIN rail. DIN Rail power supply's are great for cable management, having everything in a single cabinet for consistent maintenance and ease of use.

Features and benefits:

• Easy mounting by snapping on the DIN rail or screwing onto a level surface
• Maximum energy efficiency through small losses
• Reliable power supply thanks to high MTBF (mean time between failures) of more than 500,000 hours and U/I characteristic curve
• Fast commissioning with LED function monitoring
• High operational safety by long power failure under full load
• Worldwide use by wide-range intake and international approval package
• Wide temperature range from -25 ° C to +70 ° C
• Parallel switched to increase performance and redundancy
• Outdoor installation possible
• Energy savings thanks to maximum energy efficiency and incredibly low idling losses

Typical applications:

The design of the PSUs makes them suitable for installation distributors and flat control panels. More specifically, these STEP POWER PSU's have been designed to cater for building automation applications.

How to install a DIN Rail Power Supply?

DIN rail power supplies typically feature an easy install. With the ability to mount it onto a compatible DIN rail, all you usually have to do is slide it onto one. These STEP DIN rail power supply's support NS 35 (EN 60715) rails. Once you've slid your power supply onto your rail, it is then a case of connecting your cables into the relevant inputs and outputs. Wires must be stripped 6.5mm before inserting into the terminal blocks. The terminal blocks are an effortless screw connection, making your install simple.

What is a DIN rail power supply?

Effectively, a DIN rail power supply is a power supply, that is designed to be put on a DIN rail. These power supplies cater to the industrial world, rather than consumer electronics. They feature different connection methods such as terminal block connections rather than your typical 3-pin socket power. DIN Rail PSU's are designed to sit inside cabinets and work hand-in-hand with providing higher efficiency for industrial applications.

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

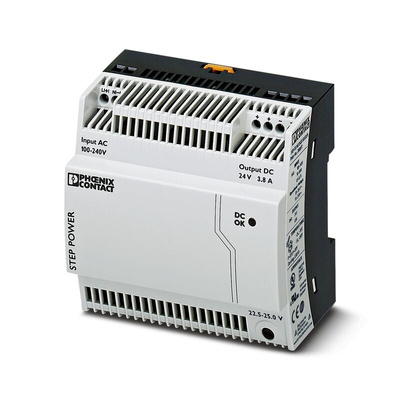

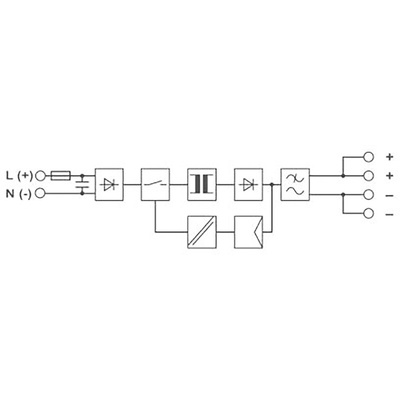

Phoenix Contact STEP-PS/ 1AC/24DC/3.8/C2LPS Series DIN Rail Power Supply, Single Phase, DIN Rail Mount - 2868677

This Phoenix Contact DIN rail power supply is the ideal power solution for automation systems. With a compact design, high efficiency of over 88%, and an output of 24V DC/3.8A, this power supply ensures reliable performance in various applications within the automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Single phase power supply suitable for DIN rail mounting
• High quality switch mode power supply for maximum energy efficiency
• Compact dimensions of 90 x 61 x 90 mm for flexible installation
• Efficient power rating of 91W
• Low idling losses and high MTBF of 500,000h for long term reliability
• Output voltage of 24V DC and output current of 3.8A for consistent power delivery
• Excellent efficiency of over 88% for energy savings
• Reliable performance in temperatures ranging from 25°C to +70°C
• Versatile applications in building automation and electrical installations

Applications

• Ideal for use in distribution boards and control panels
• Suitable for building automation systems and industrial machinery
• Perfect for powering sensors, actuators, and control devices
• Used in HVAC systems, lighting controls, and security systems

Can it provide stable power output in harsh industrial environments?

Yes, the Phoenix Contact DIN rail power supply is designed to deliver consistent power in temperatures ranging from -25°C to +70°C, making it ideal for industrial use.

Will it help in reducing energy consumption?

Yes, with an efficiency of over 88%, this power supply ensures maximum energy efficiency, leading to reduced energy consumption in operational processes.

Is it suitable for single-phase applications?

Yes, this power supply is specifically designed for single-phase applications, offering reliable power delivery for various electrical systems.

Can it be easily integrated into existing automation setups?

The compact design and DIN rail mounting make it easy to integrate the Phoenix Contact power supply into existing automation setups without extensive modifications.

Does it come with protection against voltage surges?

With built-in transient surge protection and varistors, this power supply ensures protection against voltage surges, safeguarding connected equipment from damage.
