2866802, Phoenix Contact QUINT-PS/3AC/24DC/40 Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 40A Output,, Блок питания

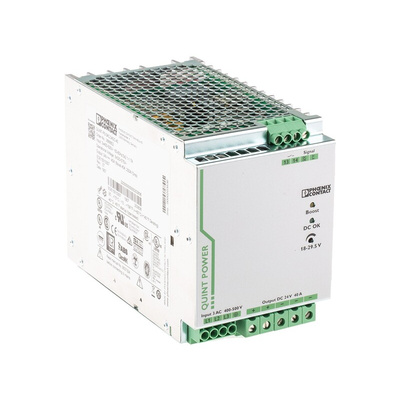

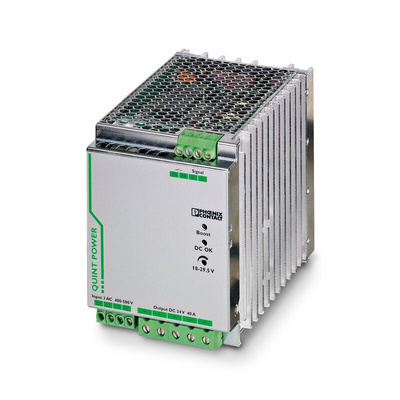

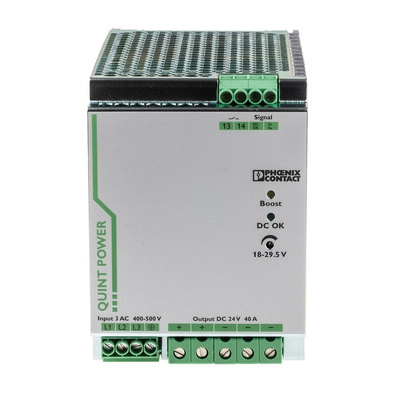

Phoenix Contact DIN Rail Power Supply, Selective Fuse Breaking, IP20 Rating - QUINT-PS/3AC/24DC/40 - 2866802

When the job calls for a PSU with a light touch, choose this DIN rail power supply from Phoenix Contact. Its integrated selective-fuse-breaking circuit boosts safety and productivity by handling short circuits and overcurrents without taking your system offline. LED indication lets you know the status of the active switching output and relay contact by either flashing or emitting a steady green light.
Taking an input between 400 and 500V AC or 500 and 600V DC, the unit steps it down to a carefully regulated output of 24V DC. As this device is a three-phase type and designed for use with very high loads, it's a practical choice for demanding industrial applications. It does its job without breaking a sweat in temperatures between -25°C and +70°C. Tipping the scales at just under 3kg, it's easy to handle during installation.

Features & Benefits

• IP20-rated to indicate you're safe from electric shocks
• Output voltage adjustable between 18 and 29.5V DC to give you flexibility
• POWER BOOST function gives you a hand when starting load-drawing kit like motors
• Typical efficiency of 94% means it produces very little waste heat and doesn't need a heatsink to keep cool
• Resists shock and vibration, so works without a hitch when installed near moving machinery
