2866679, Phoenix Contact QUINT-PS/1AC/48DC/5 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 48V dc dc Output,, Блок питания

Phoenix Contact QUINT POWER - Power supplies

The range of QUINT POWER from Phoenix contact are superior power supplies that provide a seamless experience as they're feature-packed with all necessary requirements and more. These power supplies maximise the availability of your plant by utilizing technologies such as NFC (Near field communication) so you can quickly configure these supplies from a smartphone, SFB (Selective Fusebreaking), 6-times nominal current for 12ms, extended life range of over 500,000 hours and super-reliable start in difficult loads with a static power reserve (POWERBOOST).

These brilliant power supplies are designed to be mounted onto a DIN rail and contain screw connections for your cables. Not to mention, these PSU's (Power supply unit) features a preventative function monitoring that allows the device to report on critical statues before any errors occur.

Features and benefits:

• Primary-switched


• Super-reliable power supplies come backed by over 500,000 hours of life


• Adjustable voltage ranges cover a vast spectrum of voltages.


• Fast tripping of standard circuit breakers wutg dynamic power reserve - 6 times to nominal current for 12ms


• Preventative function monitoring


• NFC technology allows you to easily configure the PSU (configure signalling thresholds and characteristic curves)


• Output of 24 VDC/20 A


• Slim design with a conformal coating to allow you to install it in extreme environments


• 93% efficient (for 230 V AC and nominal values)

How do I wire a DIN rail power supply?

The QUINTPOWER power supply unit's feature terminal blocks on both the top & bottom of the unit. You'll need to strip 7mm length from your cable and insert it into the terminal blocks. A simple screw connection (M4 screw) will then lock your cable into the terminal block, providing an output or input connection. However, please follow all manafactuer installation instructions.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

Note

665-7766, 665-7769, 665-7794 and 665-7790 do not feature SFB technology

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved, CSA, CB, ABS

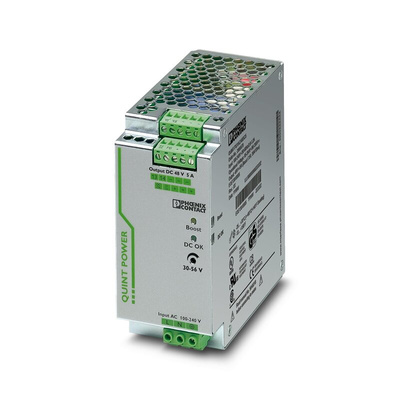

Phoenix Contact Switch Mode DIN Rail Power Supply, 240W Power Rating - QUINT-PS/1AC/48DC/5 - 2866679

Efficiently convert your electrical supply and safely power your equipment using this power supply from Phoenix Contact. The primary-switched unit takes AC (alternating current) and changes it to DC (direct current). The voltage is adjustable, so you can tailor it to your needs and, thanks to a power-boost function, it can reliably start heavy loads. Critical machines and circuits are protected through preventative monitoring that detects high currents and swiftly reports errors to your system. This is supported by the quick tripping of breakers when currents are six times higher than the nominal power.
As it's a DIN rail power supply with pluggable screw connections, this device is easy to install in your control cabinet, enclosure or rack. NFC (near field communication) technology simplifies setup and lets you control it from an app. An LED (light-emitting diode) status display makes it even more user-friendly.

• Long life of 500,000 hours reduces maintenance time
• Protective coating allows installation in extreme environments
• Meets European safety standard EN 50178 for power installations, so reliably protects against shock currents
• Wide operating temperature between -25°C and +70°C for use in harsh conditions

Datasheet 2866679
