2866569, Phoenix Contact UPS Battery Pack, for use with MINI-DC-UPS-12DC/2

Uninterruptible Power Supplies

Uninterruptible battery power supply units are the ideal solution to an unstable mains supply. With IQ technology they provide information regarding the charging state, remaining runtime and the service life of your rechargeable battery module. Now, also available, a UPS with integrated rechargeable battery.

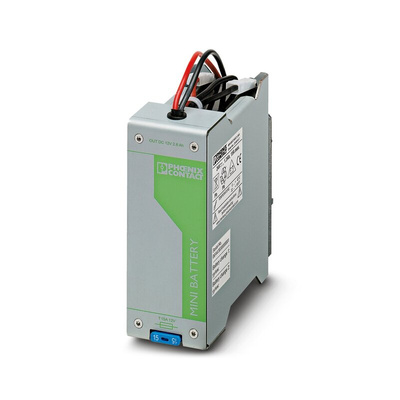

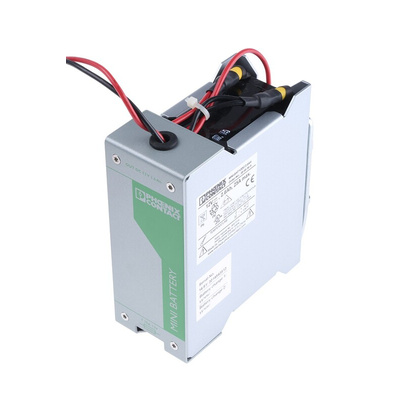

Phoenix Contact Power Storage Device, 12V DC, 2.6Ah - MINI-BAT/12DC/2.6AH - 2866569

Ensure reliable system availability with this power storage device from Phoenix Contact. It functions as a battery pack for an uninterrupted power supply (UPS) and continually communicates with the UPS to provide constant backup power.
The device features AGM (absorbent glass mat) technology, which offers the power necessary to support the higher electrical demands of start-stop applications, such as those found in motors. Its maximum buffer times smooth out potential power fluctuations before they reach equipment for enhanced safety and reliability. To significantly enhance its service life, the valve-regulated battery is completely sealed with pressure-release valves that prevent gases from escaping.
This battery pack requires minimal packing space in a control cabinet, thanks to its compact profile. A modular design makes it easy to install and it's compatible with Phoenix Contact's MINI-DC-UPS-12DC/2 uninterrupted power supply unit.

Features & Benefits

• Dimensions of 130 (length) x 52 (width) x 110mm (depth)
• IP20 (ingress protection) rating indicates it's touch-proof and protected from objects larger than 12mm
• Can connect up to five units in parallel for maximum system reliability
• UL (Underwriters' Laboratories) approved to use in hazardous locations

Datasheet

Contains SVHC - Lead - CAS No. 7439-92-1

Brochure - Power Supply Systems

Line Drawing - 2866569
