2866378, Phoenix Contact QUINT DC-DC Converter, 24V dc/ 10A Output, 18 → 32 V dc Input, 240W, DIN Rail Mount, +70°C Max, Преобразователь

QUINT POWER - DC/DC Converter

The QUINT DC-DC converter converts the DC voltage to an adjustable, controlled and galvanically separated 24 V output voltage. If no regulated and stable 24 V dc voltage is available to supply a load, DC-DC converters ensure the adjustment of the 24 V load: A non-regulated DC voltage is converted to an adjustable output voltage of 22.5 V to 28.5 V.
Due to electrical isolation, the DC voltage circuits are electrically isolated from each other in a safe way. With a design width of only 80 mm, the housing is compact. The floating DC-OK output and an LED are available for signalling.

Features and Benefits

•Compact in design
•Transient surge protection
•Horizontal DIN Rail NS 35 mounting
•Electrical isolation
•Stable voltage conversion

Approvals

UL

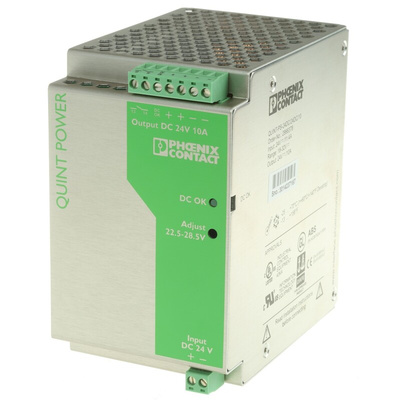

Phoenix Contact 240 W Isolated DC to DC Converter DIN Rail Mount - QUINT-PS-24DC/24DC/10 - 2866378

This DC to DC converter from Phoenix Contact transforms DC variable input voltages between 18 V and 32 V to a stable 24 V output voltage. Its compact design means it can be used in applications where space is tight, such as in battery-powered devices.

You can mount the converter onto any standard DIN rail, so it's compatible with most common electronic setups, including telecommunication equipment and control systems. It operates efficiently within a wide temperature range of -25°C to +70°C, so you can safely use it in harsh industrial settings.

The DC circuits in this converter are electrically isolated from each other for safety. The component has also been rigorously tested for shock, vibrations and fire hazards to ensure safety and reliable performance in tough environments.

• Isolation voltage of 1.5 kV dc
• Single output
• Output current of 10 A
• Output voltage of 24 V DC
• Power rating of 240 W
• DIN rail mount type
• Load regulation of ± 2%

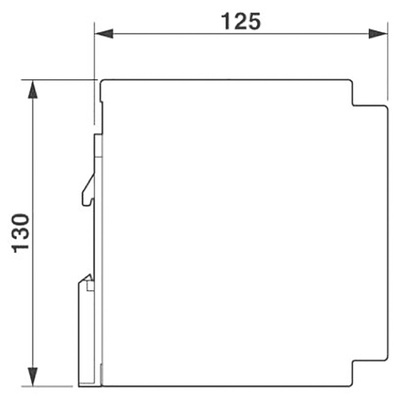

• Dimensions of 130 (length) x 80 (width) x 125 mm (depth)
