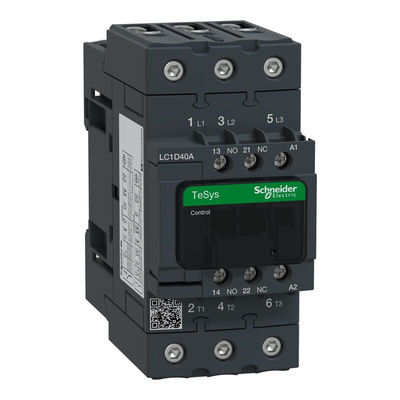

LC1D40AF7, Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 40 A, 18.5 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, DIN Rail Mounting, 5.4W Maximum Power Loss Per Pole - TeSys D Series - LC1D40AF7

Snap your industrial gear to attention with this contactor from Schneider Electric. With its 40A current rating, you can trust it to close and open standard circuits with the flick of a switch. Don't worry about monitoring the device, as its built-in auxiliary contacts notify your controller when it switches to keep you updated. Rapid response times between just 4 and 26ms let you count on the unit to manage demanding hardware. As it clips straight onto a DIN rail, getting set up is speedy, without the hassle of special tools.

Features & Benefits

• Has three poles to support single-phase and three-phase voltages, so it's suitable for virtually any power supply
• Front cover protects sensitive switching elements against knocks and scratches
• Narrow body measurements of 55 (W) x 122 (H) x 120mm (D) mean it fits onto hard-working rails
• Lasts for around six million mechanical cycles, cutting the need for replacements

Applications

• Automotive industry
• Packing plants
• Chemical processing

Can I use this contactor in extreme temperatures?

Yes, this product operates in temperatures between -5°C and +60°C, so it's tough enough to handle harsh conditions.

Approvals

UL, GOST, CSA, CCC.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

LC1D40AF7 Product Data Sheet

Everlink Dimensional drawing

Datasheet LC1D40AF7

Product Change Notice (PCN)

Product Environmental Profile
