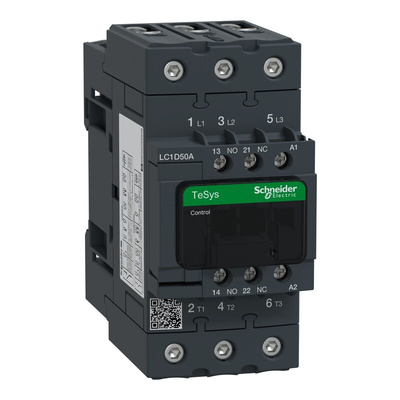

LC1D50AB7, Schneider Electric LC1D Series Contactor, 24 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 690V AC Contact Voltage Rating, 2 Auxiliary Contacts - TeSys D Series - LC1D50AB7

Control high-power motors and resistive loads such as heating elements with this versatile 3-pole contactor from Schneider Electric. It has a modular design and two auxiliary contacts for connection flexibility. A bidirectional peak-limiting diode suppressor protects the coil for safe switching. This makes it handy for starting, running and reversing electric motors. A maximum operating rate of 3,600 cycles per hour in temperatures up to +60°C makes this component a reliable choice for industrial automation applications.

Features & Benefits

• Can be mounted onto a DIN rail or with screw fixings to suit your needs
• Long lifespan of up to 1,450,000 electrical cycles and 6,000,000 mechanical cycles for durability
• Multi-standard screws can be tightened with a slotted, Phillips or Pozidriv type of screwdriver
• Compact dimensions of 122 (L) x 55 (W) x 120mm (D)

Applications

• Building control
• HVAC installations
• Energy industry
• Heavy engineering plants

What are EverLink terminals?

EverLink terminals, like those found on this contactor, are removable terminal blocks that let you join up wires without having to splice them. As they're spring-loaded type terminals, they exert the correct pressure on your wires, maintaining their reliability and reducing the need for maintenance.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.
