LC1D50AF7, Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

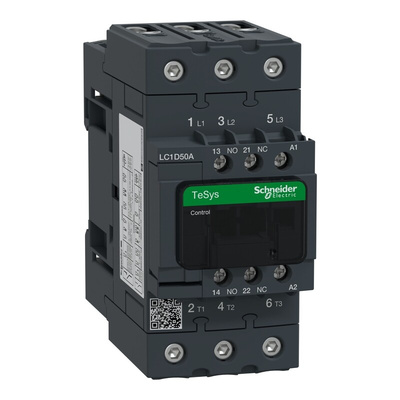

Schneider Electric Contactor, 855g Weight, 690V AC Contact Voltage Rating - TeSys D Series - LC1D50AF7

Generate a buzz in your electrical circuits with this contactor from Schneider Electric. Three poles and two auxiliary contacts deliver the connectivity needed to unlock your system's potential. The component's 690V AC contact voltage means it's suitable for use in high-power circuitry and demanding motor-starting applications. An overvoltage category III rating indicates your setup is safe from power surges that might otherwise damage sensitive parts. You'll get installation done and dusted in a flash, as the unit can be mounted on a DIN rail or screwed onto a plate.

Features & Benefits

• Mechanical durability of six million cycles for longevity
• Completes up to 3600 cycles per hour to sustain high levels of productivity
• Light weight of 855g minimises the load on your setup
• Broad operating temperature range between -5°C and +60°C makes it ideal for use in harsh environments

Applications

• Electrical workshops
• Agricultural equipment
• Automation systems

What size is this product?

This unit has dimensions of 122 (L) x 120 (D) x 55mm (W), so it's a space-efficient choice you can squeeze into setups where space is tight.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

LC1D50AF7 Product Data Sheet

Everlink Dimensional drawing

Datasheet LC1D50AF7

Product Environmental Profile
