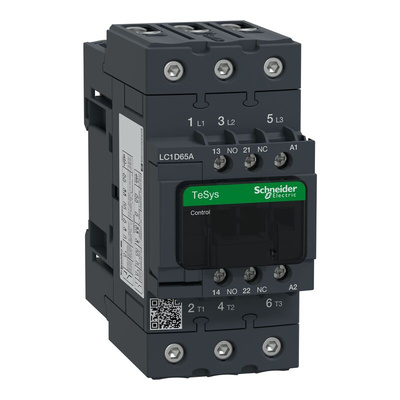

LC1D65AV7, Schneider Electric LC1D Series Contactor, 400 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 690V AC Contact Voltage Rating, 3NO Configuration - TeSys D Series - LC1D65AV7

Looking for an electrically controlled switch for a resistive load or motor control application? Use this contactor from Schneider Electric. A 65A contact current rating and double-breaking contacts mean it switches higher currents, making it suitable for use in heavy industry. It's fitted with a bidirectional peak-limiting diode suppressor to protect the coil from electrical damage. Two built-in auxiliary contacts let you increase your switching capabilities without installing a separate contact block, while the unit's modular design lets you attach additional blocks and accessories as needed.

Features & Benefits

• Free from mercury, toxic heavy metals and PVC to reduce its environmental impact
• Plate and rail mounting options for flexibility
• Wide operating temperature range between -5°C and +60°C for use in harsh conditions
• Spring-loaded power terminals make sure the circuit is broken when de-energised, for enhanced safety

Applications

• Industrial automation
• Motor control
• HVAC systems
• Power management

Does this contactor have a long lifespan?

Yes. This contactor has an expected lifespan of 6,000,000 mechanical cycles and up to 1,450,000 electrical cycles, so you can rely on its longevity.

LC1D65AV7 Product Data Sheet

Everlink Dimensional drawing

Product Change Notice (PCN)

Catalogue - Motor Starters

Line Drawing - LC1D65AV7

Product Environmental Profile
