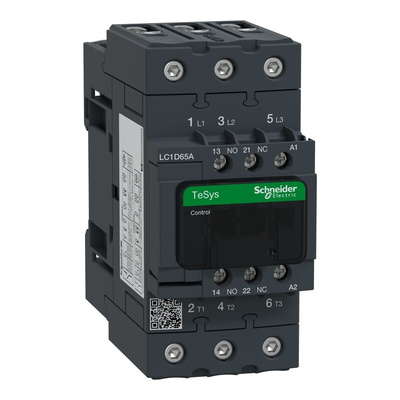

LC1D65AF7, Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 690 V ac, Контактор

6658087
Номер производителя: LC1D65AF7Производитель: Schneider Electric
Цена за шт.
94095.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

  • AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

  • AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, 1.4kg Weight, IP20 Rating - TeSys D Series - LC1D65AF7

Pick up this contactor from Schneider Electric to relay energy to your industrial equipment. It's a sturdy choice with a 30kW power rating to supercharge your workflow. Three poles and two auxiliary contacts offer easy joining potential to create an electrical network that boosts productivity. Compact dimensions of 122 (L) x 120 (D) x 55mm (W) save space, while easy-to-wire screw terminals achieve a firm hold, even in vibrating conditions. This assembly is heat resistant to +850°C to avoid a meltdown in the event of a fire.

Features & Benefits

• IP20-rated front face means that it's touch-proof and resistant to dust or objects bigger than 12mm
• Clips onto a DIN rail or screws onto a plate to make setup straightforward and speedy
• Free from mercury and other toxic heavy metals for an environmentally friendly choice that's safe to handle

Applications

• Industrial motor operation
• Automated processing
• Manufacturing facilities

Can I use this device in harsh industrial conditions?

Yes. This product has a broad operating temperature range between -5°C and +60°C, so it withstands the demands of harsh industrial conditions.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

Certificate No.
type":"Certificate No.",

UL, GOST, CSA, CCC.

Техническая спецификация
pdfLC1D65AF7 Product Data Sheet
pdfEverlink Dimensional drawing
pdfDatasheet LC1D65AF7
pdfProduct Environmental Profile
Верификация Better World:
Green Premium
Вид монтажа:
Plate, Rail
Глубина:
120мм
Диапазон:
TeSys D
Длина:
122мм
Катушка напряжение:
110 В перем. тока
Количество вспомогательных контактов:
2
Количество полюсов:
3
Конфигурация вспомогательных контактов:
1NO + 1NC
Мощность номинальная:
30 кВт
Напряжение управления:
110 В перем. тока
Номинальное напряжение контакта:
690 В перем. тока
Номинальный ток контакта:
65 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-5°C
Серия:
LC1D
Тип клеммы:
Everlink
Товар Better World:
Да
Ширина:
55мм
