RS PRO 14-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A, Модуль

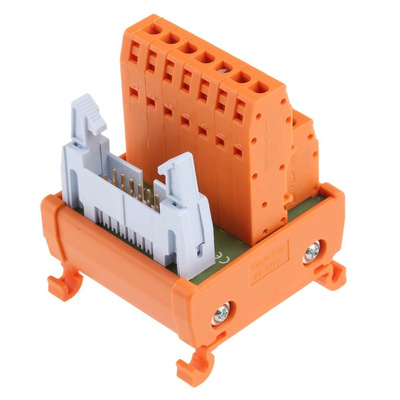

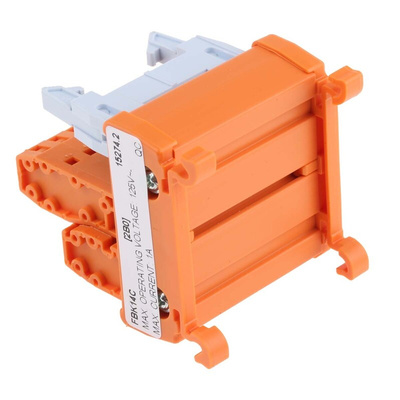

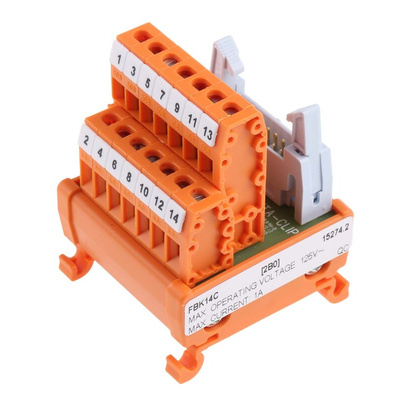

RS PRO, 14 Pole Flat Ribbon Cable Connector, Male Interface Module, DIN Rail Mount

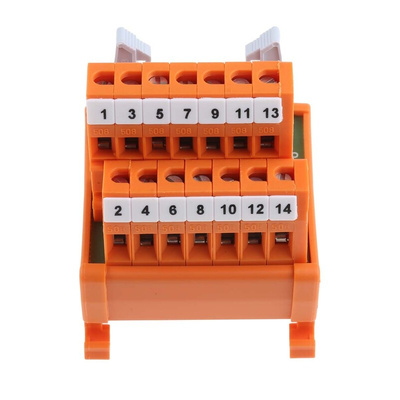

Look to this RS PRO flat ribbon cable connector to keep your installation time short and maintenance low. This space-saving component boasts clear terminal labels that make connecting your electronic devices simple and straightforward. This type of connector is used to optimise your wiring and works particularly well as an alternative to a pure wire approach.

The connector has male interface module plug with 14 contacts, as well as a DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) rail mount design. Supporting flat ribbon cable connections from 14 AWG to 22 AWG, it keeps them extra secure through a screw-clamp and 7 mm insulating strip.

Thanks to its simple ejector mechanism, this connector lets you eject your cables easily. Meant for use with cables with a cross-sectional area of 0.2 mm² to 2.5 mm², it's often found in factories and manufacturing plants.

Features and Benefits

• Male interface module DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) rail mount
• Flat ribbon cable
• Current rating of 1 A
• Voltage rating of 125 V (AC/DC)
• 14 contacts
• American Wire Gauge of 14 AWG to 22 AWG
• Suitable for cables with a cross-sectional area of 0.2 mm² to 2.5 mm²
• Measures 63 mm x 61 mm x 47 mm
• Operating temperature range of -20°C to +50°C
