RS PRO 10-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A, Модуль

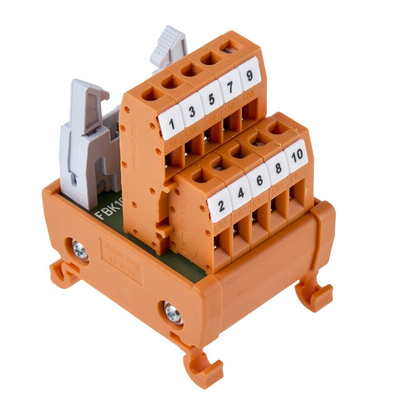

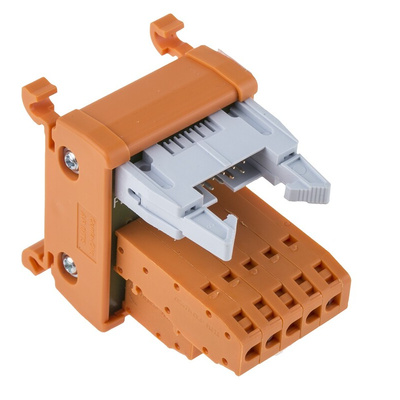

RS PRO, 10 Pole Flat Ribbon Cable Connector, Male Interface Module, DIN Rail Mounting

This 10-pole flat-ribbon cable connector from RS PRO allows you to connect to ribbon cables without having to use a pure-individual wire approach. Connectors of this type are commonly used with ribbon cables for data transmission and communications. It's suitable for use with conductors stripped to a length of 7 mm.
The compact unit is easy and quick to clip onto a DIN rail and an ejector mechanism means it can be disassembled just as easily. This cable connector uses screw-clamp connections to grip conductors securely for a strong, reliable connection.
It meets the German Institute of Standardisation's DIN EN 50178 and DIN VDE 0110 standards, so you're guaranteed that it's a safe and effective piece of low-voltage electronic equipment.

Features and Benefits

• Cross-sectional area (CSA) of 0.2 to 2.5 mm²
• Flat-ribbon cable connector
• Current rating of 1 A
• Depth of 47 mm
• Dimensions of 36 x 61 x 47 mm
• Male gender
• Length of 36 mm
• Maximum operating temperature of +50°C
• Minimum operating temperature of -20°C
• Suitable for mounting on DIN rails
• Ten contacts
• Test-proof voltage of 0.67 kV AC
• Voltage rating of 125 V AC/DC
• Width of 61 mm
• Wire size of 22 to 14 American Wire Gauge (AWG)

RS Pro Datasheet
