RS PRO 34-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A, Модуль

Interface Modules

Screw-clamp connection
Male plug - flat ribbon cable connection EN 60 603-13/DIN 41651
DIN EN 50178; DIN VDE 0110, pollution degree 2
Ejector mechanism
Compact design, clear terminal labelling and simple assembly
Insulating stripping length 7mm
Alternative to pure individual wire approach

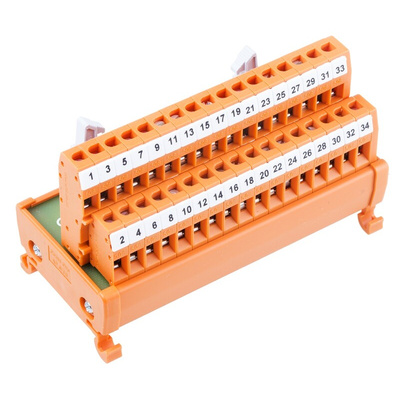

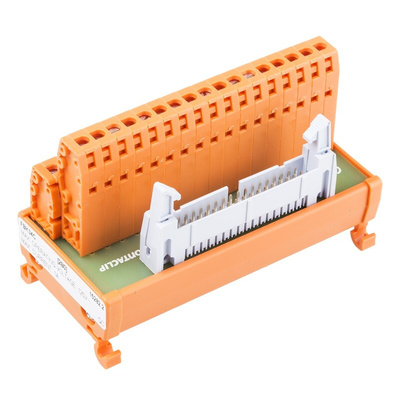

RS PRO 34 Pole Flat Ribbon Cable Connector, Male Interface Module, DIN Rail Mounting

Use this RS PRO 34-pole flat-ribbon cable connector to connect to ribbon cables without the need to use a pure-individual wire method. This kind of connector is designed for use with conductors stripped to a 7 mm length and is regularly used for data communications and transmission.


The compact design and ejector mechanism make it fast and simple to install or remove from a DIN rail. Its screw-clamp connections attach firmly to conductors for a reliably strong connection.


Its simple assembly and clear terminal labelling make it easy to build systems. The connector meets DIN VDE 0110 and DIN EN 50178 standards from the German Institute of Standardisation, meaning it's an effective and safe low-voltage electronic appliance.

Features and Benefits

• Cable cross-sectional area (CSA) of 0.2 to 2.5 mm²


• Flat-ribbon cable connector


• Current rating of 1 A


• Dimensions of 96 (length) x 61 (width) x 47 mm (depth)


• Male gender


• Maximum operating temperature of +50°C


• Minimum operating temperature of -20°C


• Suitable for mounting on DIN rails


• 34 contacts


• Test-proof voltage of 0.67 kV AC


• Voltage rating of 125 V AC/DC


• Wire size of 22 to 14 American Wire Gauge (AWG)
