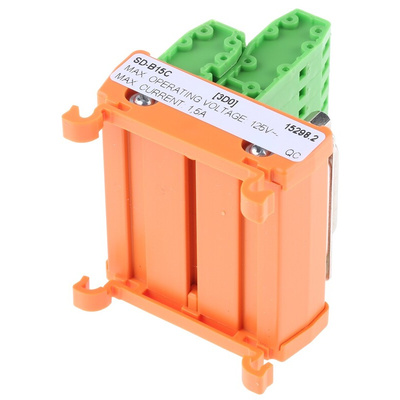

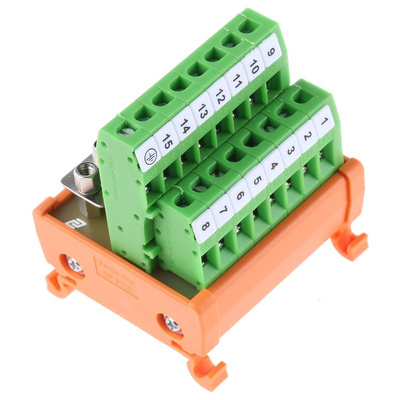

RS PRO 15-Contact Female Interface Module, D-sub Connector, DIN Rail Mount, 1.5A, Модуль

RS PRO, 15 Pole D-sub Connector, Female Interface Module, DIN Rail Mounting

Need to plug a D-sub connector into wired connections? This 15-pole D-sub connector from RS PRO can be connected to secure screw-clamp terminals that will hold your conductors firmly in place, guaranteeing reliable electrical transmission.
The compact unit offers a neat and efficient alternative to the pure individual wire approach when making connections. It's compatible with a DIN TS35 rail and it's easy and fast to mount. It's suitable for use with conductors stripped to a length of 6 mm to 7 mm.
The connector comes fitted with a female plug with 15 contacts. It meets the German Institute of Standardisation's DIN41652 rating that guarantees reliable and effective D-sub connectors. This kind of component has become the most commonly used type of connector in computer systems.

Features and Benefits

• Cross-sectional area (CSA) of 0.2 to 2.5 mm²
• D-sub connector
• Current rating of 1.5 A
• Depth of 47 mm
• Width of 61 mm
• Length of 51 mm
• Dimensions of 51 x 61 x 47 mm
• Female gender
• Maximum operating temperature of +50°C
• Minimum operating temperature of -20°C
• Suitable for mounting on the German Institute of Standardisation's DIN rails
• 15 contacts
• Test-proof voltage of 0.6 kV
• Voltage rating of 125 V AC/DC
• Wire size of 22 to 14 American Wire Gauge (AWG)
