RS PRO 9 Pole D-sub Connector, Female Interface Module, DIN Rail Mount

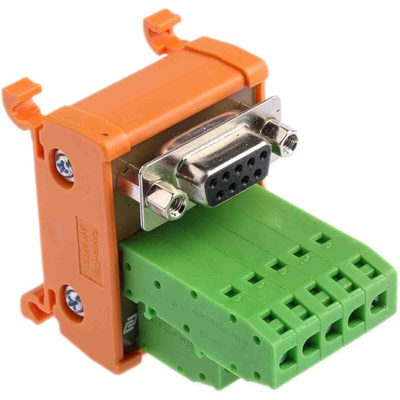

This female D-sub interface module from RS PRO is ideal for wiring jobs of all types. It features a D-subminiature plug with nine contacts, screw clamp terminals and a DIN rail mounting plate.

Accommodating wires from 0.2 to 2.5 mm² (AWG 22 to 14), this time-saving interface lets you simply snap or slide components into place on the rail for a well-organised layout. Its DIN rail TS35 mount makes the mounting of electrical components safe and efficient. The DIN rail mount also conveniently allows you to bring internal and external wiring circuits together – particularly handy in situations where space is limited. This interface module has an operating temperature range of -20°C and +50°C.

Found in factories, manufacturing plants and tool rooms, interface modules like this one are an integral part of industrial wiring applications.

Features and Benefits

• D-Sub connector
• Female
• 9 contacts
• Interface module
• Length of 37 mm
• Height of 61 mm
• Depth of 47 mm
• Voltage of 125 V AC / DC
• US wire size from 22 to 14 AWG
• Cable CSA 0.2 to 2.5 mm²
• DIN rail mount
• Test proof voltage of 0.6 kV
• Current rating of 1.5 A
• Operating temperature range of -20°C to +50°C
