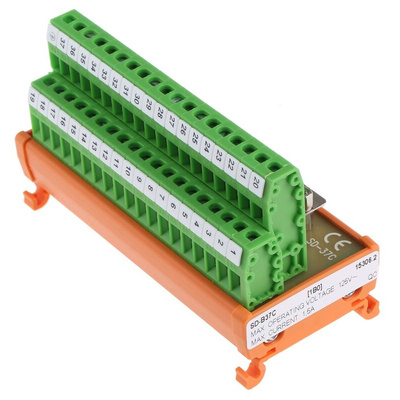

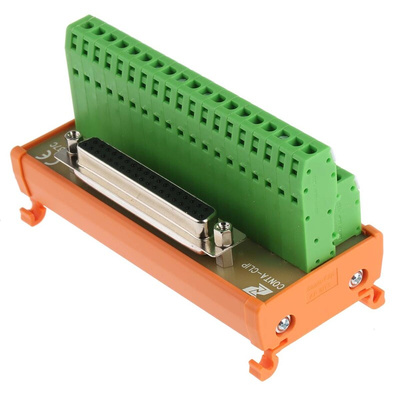

RS PRO 37-Contact Female Interface Module, D-sub Connector, DIN Rail Mount, 1.5A, Модуль

RS PRO 37 Pole D-sub Connector, Female Interface Module, DIN Rail Mount

Look to this 37-contact female D-sub interface module from RS PRO for all types of wiring tasks. It comes fitted with a D-subminiature plug with screw clamp terminals and a DIN rail TS35 mounting plate.

This interface module can accommodate wires from 0.2 to 2.5 mm² (AWG 22 to 14) and operates effectively between temperatures of -20°C and +50°C. Thanks to its DIN rail mount type, it's safe and efficient to mount electrical components. You can simply snap or slide the components into place on the rail for a tidy and organised layout, saving you time. The DIN rail mount is also particularly convenient in settings where space is limited as it lets you bring internal and external wiring circuits together.

Interface modules like this one are commonly used in wiring applications everywhere from tool rooms to manufacturing plants.

Features and Benefits

• D-Sub connector
• Female
• 37 Contacts
• Interface module
• Length of 107 mm
• Height of 61 mm
• Depth of 47 mm
• Voltage of 125 V AC / DC
• US wire size from 22 to 14 AWG
• Cable CSA 0.2 to 2.5 mm²
• DIN rail mount
• Test proof voltage of 0.6 kV
• Current rating of 1.5 A
• Operating temperature range of -20°C to +50°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
