RS PRO 9-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1.5A, Модуль

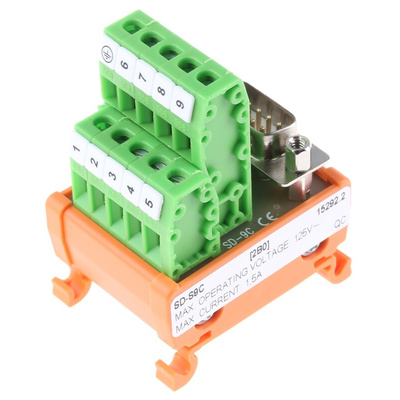

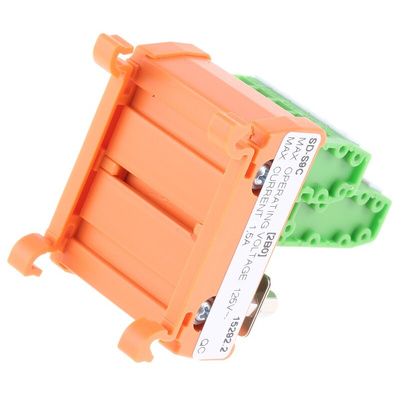

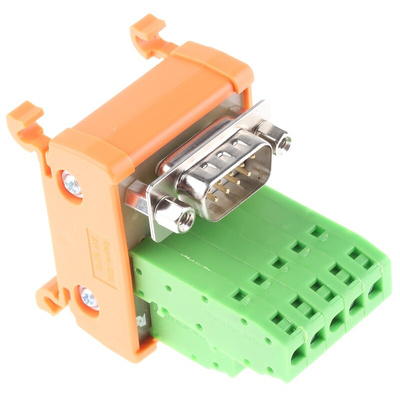

RS PRO 9 Pole D-sub Connector, Male Interface Module, DIN Rail Mount

Use this RS PRO 9-pole D-sub interface module for all types of wiring tasks. It consists of a D-subminiature plug with nine contacts, screw clamp terminals and a DIN rail TS35 mounting plate.

It's safe and easy to fix electrical components onto the module, thanks to its handy DIN rail mount. It helps you keep your layout neat and tidy, as all you need to do is simply snap or slide the components into place. The DIN rail mount also conveniently lets you bring internal and external wiring circuits together, a feature that's particularly useful in locations where space is limited. This male interface module has an operating temperature range of -20°C and +50°C and works with wires from 0.2 to 2.5 mm² (AWG 22 to 14).

Interface modules like this one are typically used as an essential part of wiring applications in manufacturing plants and factories.

Features and Benefits

• D-Sub connector
• Male
• 9 contacts
• Interface module
• Length of 37 mm
• Height of 61 mm
• Depth of 47 mm
• Voltage of 125 V AC / DC
• US wire size from 22 to 14 AWG
• Cable CSA 0.2 to 2.5 mm²
• DIN rail mount
• Test proof voltage of 0.6 kV
• Current rating of 1.5 A
• Operating temperature range of -20°C to +50°C
