RS PRO 25-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1.5A, Модуль

RS PRO, 25 Pole D-sub Connector, Male Interface Module, DIN Rail Mount

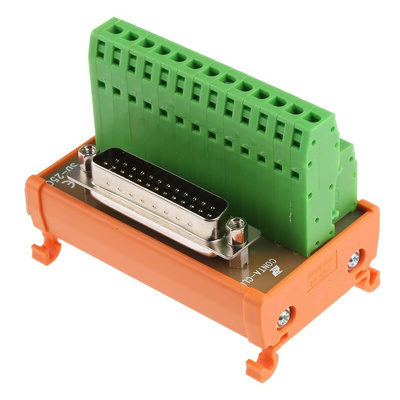

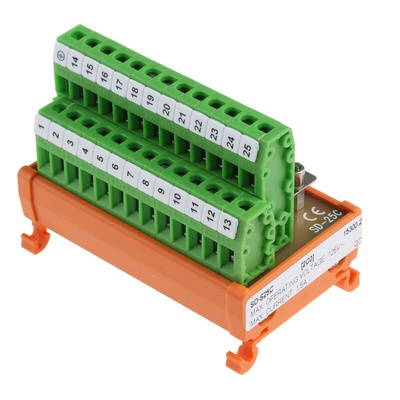

This RS PRO D-sub male interface module is ideal for all your wiring needs. It comes fitted with a D-subminiature plug with 25 contacts, a DIN rail mounting plate, as well as screw clamp terminals.

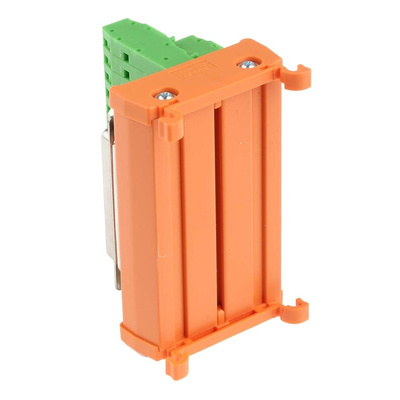

This interface module operates between temperatures of -20°C and +50°C. Its DIN rail TS35 mount makes mounting electrical components onto it safe and straightforward. It can accommodate wires from 0.2 to 2.5 mm² (AWG 22 to 14). You simply snap or slide the components into place on the rail for a neat and well-organised layout, saving you time. Plus, the DIN rail mount conveniently allows you to bring together internal and external wiring circuits, which is especially useful in settings where space is limited.

Interface modules like this one are an essential part of wiring applications in tool rooms, as well as factories and manufacturing plants.

Features and Benefits

• D-Sub connector
• Male
• 25 Contacts
• Interface module
• Length of 78 mm
• Height of 61 mm
• Depth of 47 mm
• Voltage of 125 V AC / DC
• US wire size from 22 to 14 AWG
• Cable CSA 0.2 to 2.5 mm²
• DIN rail mount
• Test proof voltage of 0.6 kV
• Current rating of 1.5 A
• Operating temperature range of -20°C to +50°C
