RS PRO 37-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1.5A, Модуль

D Subminiature

Interconnect D-Subminiature into screw-clamp terminals
D-sub according to MIL-C-24308 / DIN41652
Compact 47 mm profile
Rail mount on DIN-rail TS35
1.5A current rating per pin
Stripping length, screw/tension spring 6-7mm
Alternative to pure individual wire approach

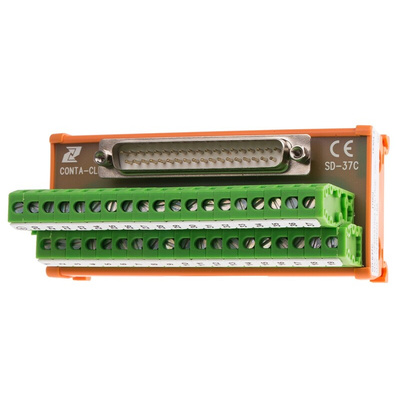

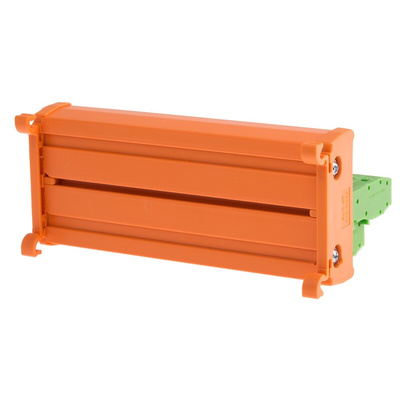

RS PRO 37 Pole D-Sub Connector, Male Interface Module, DIN Rail Mounting

For reliable electrical transmission, plug this 37-pole D-sub connector from the RS PRO range into a wired connection. You can connect it to screw-clamp terminals to keep your conductors securely in position and guarantee uninterrupted transmission.


The connector provides an efficient and neat alternative to the pure individual wire method of creating connections. It's easy to mount and is compatible with DIN TS35 rails and conductors stripped to a 6 mm to 7 mm length.


You'll commonly find this type of connector used in computer systems. Thanks to its DIN41652 rating from the German Institute of Standardisation, you can rest assured that it's an effective and reliable D-sub connector.

Features and Benefits

• Cable cross-sectional area (CSA) of 0.2 to 2.5 mm²


• D-sub connector


• Current rating of 1.5 A


• Dimensions of 107 (length) x 61 (width) x 47 mm (depth)


• Male gender


• Maximum operating temperature of +50°C


• Minimum operating temperature of -20°C


• Suitable for mounting on DIN rails


• 37 contacts


• Test-proof voltage of 0.6 kV


• Voltage rating of 125 V AC/DC


• Wire size of 22 to 14 American Wire Gauge (AWG)
