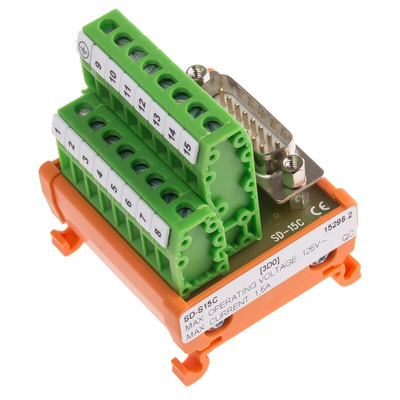

RS PRO 15-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1.5A, Модуль

D Subminiature

Interconnect D-Subminiature into screw-clamp terminals
D-sub according to MIL-C-24308 / DIN41652
Compact 47 mm profile

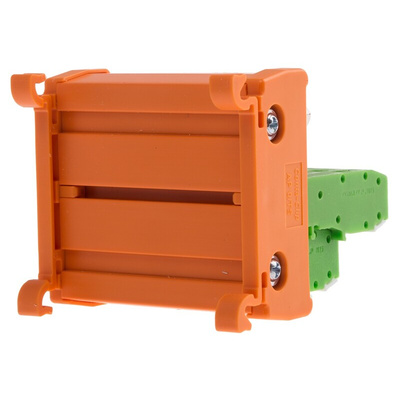

Rail mount on DIN-rail TS35
1.5A current rating per pin
Stripping length, screw/tension spring 6-7mm
Alternative to pure individual wire approach

RS PRO 15 Pole D-Sub Connector, Male Interface Module, DIN Rail Mounting

Need a reliable D-sub connector for use with your wired connections? Choose this RS PRO 15-pole D-sub connector. It guarantees reliable electrical transmission as it can be connected to secure screw-clamp terminals to hold your conductors firmly in place.


The connector provides an efficient alternative to the pure individual wire approach for establishing connections. It's fast and easy to mount as it's compatible with a DIN TS35 rail.


You can use this unit in your computer systems with conductors stripped to a 6 mm to 7 mm length. It's guaranteed to operate reliably and effectively as it conforms to the German Institute of Standardisation's DIN41652 standards.

Features and Benefits

• Cable cross-sectional area (CSA) of 0.2 to 2.5 mm²


• D-sub connector


• Current rating of 1.5 A


• Dimensions of 51 (length) x 61 (width) x 47 mm (depth)


• Male gender


• Maximum operating temperature of +50°C


• Minimum operating temperature of -20°C


• Suitable for mounting on DIN rails


• 15 contacts


• Test-proof voltage of 0.6 kV


• Voltage rating of 125 V AC/DC


• Wire size of 22 to 14 American Wire Gauge (AWG)
