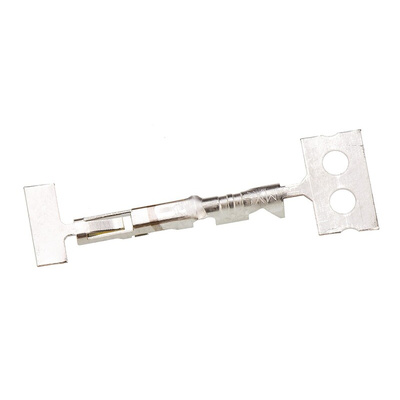

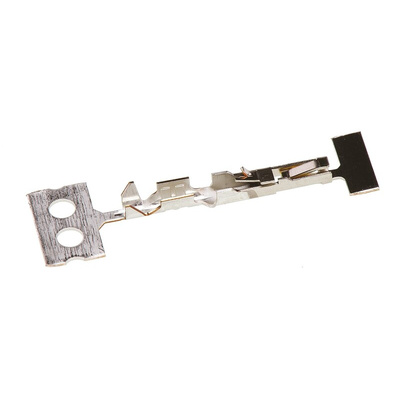

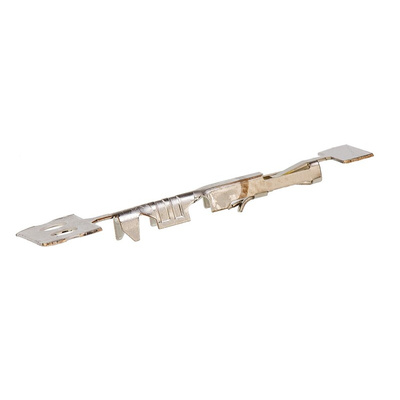

90119-0110, Molex C-Grid III Series Female Crimp Terminal, 24AWG Min, 22AWG Max, Контакты

Molex C-Grid III Crimp Terminals - 90119 Series

C-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are made from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG.
For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.

Features:

• Current Rating: 3A max
• Working Voltage: 350 Vac/dc max
• Contact Plating: Selective Gold over Nickel or Tin over Nickel
• Insulation Material Headers: 15% Glass-filled Polyester (PBT)
• Housing: Polyphenylene Oxide
• Header Pin Size: 0.64 square mm
• Recommended PCB Hole Diameter: 1mm

Application:

• Consumer Electronics
• Commercial Vehicles

Molex Crimp Terminal, Phosphor Bronze Contact Material, 0.2 to 0.35mm² Cross-Sectional Wire Size Range - 90119 Series - 90119-2110

For quick and easy wire-to-wire connections, choose this female crimp terminal from Molex. It creates a secure bond between two conductors in a jiffy, with no need for soldering or other specialist equipment. Thanks to the box design and uniform locking system, this versatile component is compatible with multiple housing styles. As it's designed to fit fine wire gauges between 24 and 22AWG, you can be sure this slimline gadget is suitable for tight spaces.

Features & Benefits

• Highly conductive phosphor bronze contacts produce a signal transfer you can rely on
• Gold contact plating is corrosion-resistant for a long service life
• 5000 in a bag for large-scale projects

Applications

• Robotics and automation systems
• Control panels
• Industrial lighting networks

What tools should I use with this product?

You can use Molex's ratcheting crimp tool (781-2728) to fix this terminal in place. Extraction and insertion tools (360-6897, 360-6881) are also available.

2.54mm Molex C-Grid III Range

Datasheet

Datasheet

Line Drawing - 90119 - 0110
