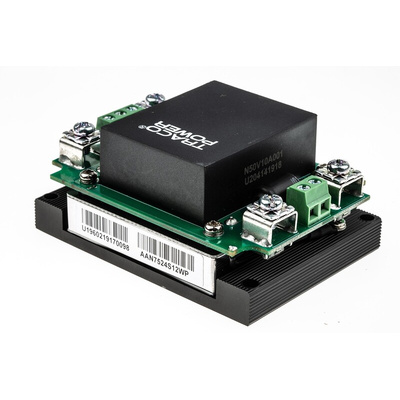

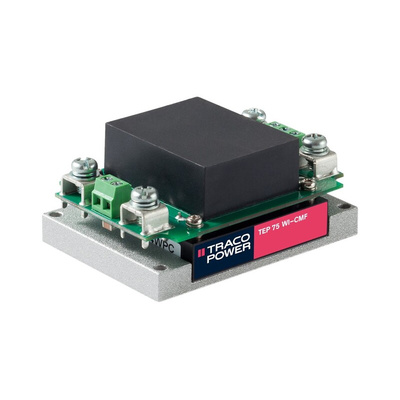

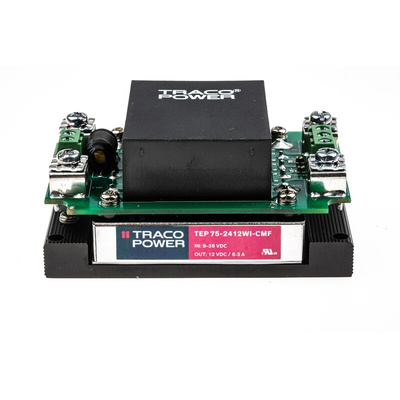

TEP 75-2412WI-CMF, TRACOPOWER TEP 75WI DC-DC Converter, 12V dc/ 6.3A Output, 9 → 36 V dc Input, 76W, Chassis Mount, +75°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 88% Efficiency, -40°C to +75°C Operating Temperature - TEP 75WI Series - TEP 75-2412WI-CMF

Make irregular power supply a thing of the past with this DC-DC converter from Traco Power. It steps down input voltages ranging between 9 and 36V DC to deliver a stabilised 12V DC. This is just what's needed for parts such as sensors and solar power inverters. An internal Pi-type filter reduces EMI and cleans out ripple noise to deliver clear transmissions. Thanks to the unit's continuous short-circuit protection and an automatic recovery function, attached devices get back to work quickly after a fault. Plus, its high efficiency of 88% indicates most of the load is successfully converted without production of waste heat, so you don't need to worry about installing a heatsink.

Features & Benefits

• Standard screw terminals for straightforward installation
• Power rating of 76W to handle heavy-duty applications
• Safe to use in challenging settings, thanks to an operating temperature range between -40°C and +75°C
• Metal housing resists corrosion and impact

Applications

• Rail industry
• Data and control centres
• Automotive manufacturing

Does this unit protect your applications from surge voltage?

Yes, the converter creates an isolation barrier of up to 3kV between the input and the output. This prevents damage to your equipment from sudden inrushes.
