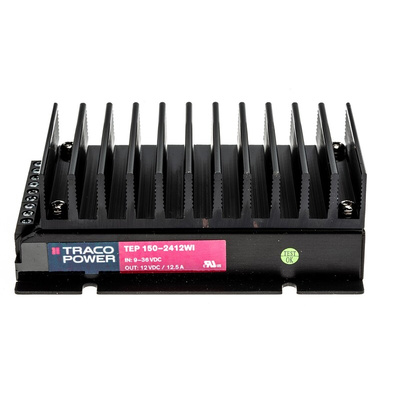

TEP 150-2412WI, TRACOPOWER TEP 150WI DC-DC Converter, 12V dc/ 12.5A Output, 9 → 36 V dc Input, 150W, Chassis Mount, Wall Mount,, Преобразователь

Traco 150W Single Output Regulated Isolated DC-DC Converter - TEP-150WI Series

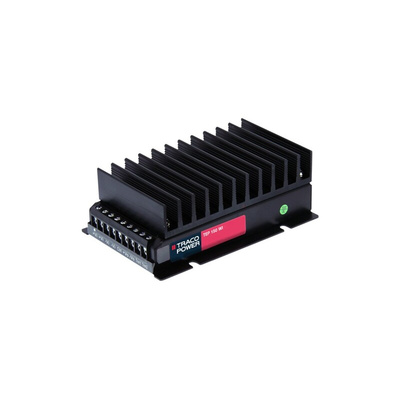

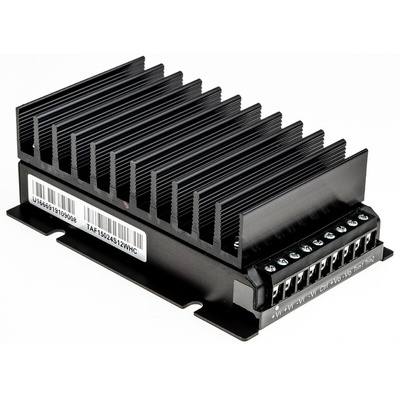

150W single output regulated isolated DC-DC converter modules with shielded metal case, heat sink, screw terminal connections and flanges for easy chassis or wall mounting. These 150W single output regulated isolated DC-DC converter modules have a high efficiency which allows an operating temperature up to +50°C with natural convection cooling and an adjustable output voltage with constant current characteristic for battery charger applications. The TEP150WI series of DC-DC converters features high immunity against surge, burst, radiated and conducted disturbances as well as high resistance to shock and vibration. These regulated isolated DC-DC converter modules are ideal for railway and industrial applications.

Shielded metal case with screw terminals
Ultra wide 4:1 input voltage ranges 8.5–36, 16.5–75, 43–160 VDC
EN 50155 approval for railway applications
Very high efficiency up to 87%
Constant current output characteristic for battery load applications
Optional with input filter to meet EN55022 class B
Overtemperature protection
Wide Operating temperature range: –40°C to +75°C
Reverse input protection
Under voltage lock-out
I/O isolation 2250 VDC
Easy chassis and wall mounting

Standards

UL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL, CB, Raylway

Traco Power DC-DC Converter, 2.25kV DC Isolation Voltage, 1 Output - TEP 150WI Series - TEP 150-2412WI

Trust this DC-DC converter from Traco Power to take care of your power supply needs. As its output is adjustable, you can choose the voltage setting that best matches your devices. The unit is regulated, so you can count on it to provide a stable and reliable flow of power, which helps to protect equipment against electrical damage. Robust construction makes the component almost indestructible – it resists vibration and thermal shock as well as current overloads. This makes it a good match for demanding settings and moving machinery applications.

Features & Benefits

• Maximum 100 mVp-p ripple and noise for minimal power loss
• Automatically recovers after a short circuit is cleared, so there's little need for manual intervention
• Meets EN 60950-1 safety standards for reduced risk of fire and shock in IT equipment
• IP55-rated casing is protected against dust and low-pressure water jets

Applications

• Railway industry
• Battery-powered equipment
• Automotive manufacturing

Does this DC-DC converter need fan cooling?

No, this product maintains a stable operating temperature using simple convection cooling, so there's no need to mount a fan.
