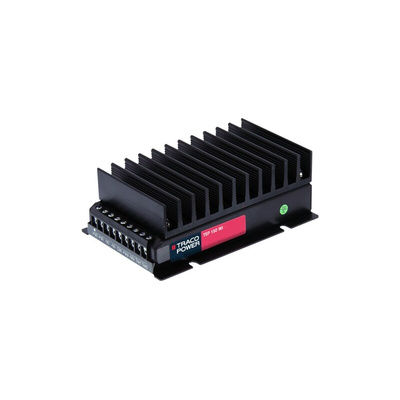

TEP 150-2415WI, TRACOPOWER TEP 150WI DC-DC Converter, 24V dc/ 6.3A Output, 9 → 36 V dc Input, 150W, Through Hole, +75°C Max Temp, Преобразователь

6662843
Номер производителя: TEP 150-2415WIПроизводитель: TRACOPOWER
Цена за шт.
75324.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Traco 150W Single Output Regulated Isolated DC-DC Converter - TEP-150WI Series

150W single output regulated isolated DC-DC converter modules with shielded metal case, heat sink, screw terminal connections and flanges for easy chassis or wall mounting. These 150W single output regulated isolated DC-DC converter modules have a high efficiency which allows an operating temperature up to +50°C with natural convection cooling and an adjustable output voltage with constant current characteristic for battery charger applications. The TEP150WI series of DC-DC converters features high immunity against surge, burst, radiated and conducted disturbances as well as high resistance to shock and vibration. These regulated isolated DC-DC converter modules are ideal for railway and industrial applications.

Shielded metal case with screw terminals
Ultra wide 4:1 input voltage ranges 8.5–36, 16.5–75, 43–160 VDC
EN 50155 approval for railway applications
Very high efficiency up to 87%
Constant current output characteristic for battery load applications
Optional with input filter to meet EN55022 class B
Overtemperature protection
Wide Operating temperature range: –40°C to +75°C
Reverse input protection
Under voltage lock-out
I/O isolation 2250 VDC
Easy chassis and wall mounting

Standards

UL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL, CB, Raylway

Traco Power TEP 150WI Series DC-DC Converter, Isolated, Single Output - TEP 150-2415WI

This 150W DC-DC converter from Traco Power is an isolated converter designed for a variety of applications. With high efficiency and a wide input voltage range of 9 36 VDC, this converter is perfect for use in both industrial and railway settings. The enclosed design with through hole mounting makes it easy to install and use.

Features & Benefits

• With a load regulation of ±0.4%, this converter offers high efficiency up to 89%
• Input voltage nominal of 24VDC and input voltage range of 9 36VDC for versatile use
• EN 50155 approval makes it suitable for railway applications
• The enclosed package with through hole mounting ensures easy installation
• With an output power rating of 150W, this converter is perfect for high powered applications

Applications

• Suitable for Industrial automation systems
• Ideal for use in mechanical devices
• Perfect for electronic equipment requiring a stable power supply
• Great for applications in the electrical industry

Can it handle a wide input voltage range?

Yes, the Traco Power DC-DC converter can handle an input voltage range of 9-36VDC.

Will it work in harsh industrial environments?

Yes, this converter is designed for harsh industrial environments, making it highly durable and reliable.

Is it suitable for railway applications?

Yes, it is railway approved, making it a perfect choice for railway applications.

Traco - 75W to 240W - TEP Series

Техническая спецификация
pdfTEP 150WI Series Datasheet
pdfIndustrial Power Solutions Catalogue
pdfRailway Solutions Catalogue
pdfSelection Guide
Встречающиеся стандарты:
UL 60950-1
Выходной ток:
6.3A
Глубина:
34мм
Диапазон входного напряжения:
9 → 36 В пост. тока
Диапазон регулировки выходного напряжения:
0 → 20%
Длина:
98мм
Изолировано:
Да
Количество выходов:
1
Максимальная температура:
+75°C
Медицинское одобрение:
Нет
Минимальная температура:
-40°C
Мощность номинальная:
150Вт
Напряжение выходное:
24В пост. тока
Напряжение изоляции:
2.25кВ пост. тока
Номинальное входное напряжение:
24 В пост. тока
Регулирование нагрузки:
±0.4%
Серия:
TEP 150WI
Тип монтажа:
Сквозное отверстие
Упаковка:
Enclosed
Утвержденно под железную дорогу:
Да
Ширина:
65мм
Эффективность:
87%
