TEP 150-4815WI, TRACOPOWER TEP 150WI DC-DC Converter, 24V dc/ 6.3A Output, 18 → 75 V dc Input, 150W, Through Hole, +75°C Max

Traco 150W Single Output Regulated Isolated DC-DC Converter - TEP-150WI Series

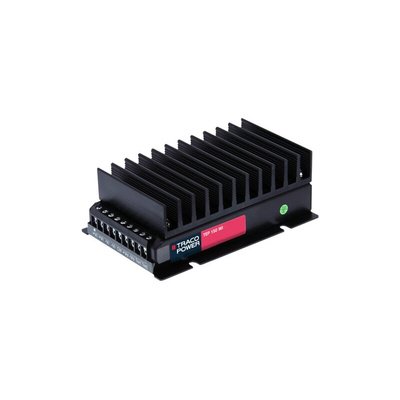

150W single output regulated isolated DC-DC converter modules with shielded metal case, heat sink, screw terminal connections and flanges for easy chassis or wall mounting. These 150W single output regulated isolated DC-DC converter modules have a high efficiency which allows an operating temperature up to +50°C with natural convection cooling and an adjustable output voltage with constant current characteristic for battery charger applications. The TEP150WI series of DC-DC converters features high immunity against surge, burst, radiated and conducted disturbances as well as high resistance to shock and vibration. These regulated isolated DC-DC converter modules are ideal for railway and industrial applications.

Shielded metal case with screw terminals
Ultra wide 4:1 input voltage ranges 8.5–36, 16.5–75, 43–160 VDC
EN 50155 approval for railway applications
Very high efficiency up to 87%
Constant current output characteristic for battery load applications
Optional with input filter to meet EN55022 class B
Overtemperature protection
Wide Operating temperature range: –40°C to +75°C
Reverse input protection
Under voltage lock-out
I/O isolation 2250 VDC
Easy chassis and wall mounting

Standards

UL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL, CB, Raylway

Traco Power DC-DC Converter, Screw Terminals, Metal Housing - TEP 150WI Series - TEP 150-4815WI

Want to say goodbye to unpredictable power supplies? Welcome this DC-DC converter from Traco Power to your system. It accepts an input voltage between 18 and 75V DC and delivers a stable output of 24V DC. This makes it the right pick for sensitive equipment such as switches and routers. An internal Pi-type filter minimises EMI and eliminates ripple noise, so you get clear signal transmissions. An auto-recovery feature helps connected devices quickly get back on track after faults have been resolved. You can mount this unit on a chassis or wall, depending on your system's needs.

Features & Benefits

• Shielded metal housing resists corrosion and impacts
• Start-up time of 35ms keeps your equipment ticking along
• Safe to use in challenging settings, thanks to an operating temperature range between -40°C and +75°C
• Power rating of 150W for use in heavy-duty applications
• Short-circuit protection quickly isolates faults and protects your machinery from damage

Applications

• Factory automation
• Consumer electronics
• Research laboratories
• Rail industry

How efficient is this component?

This converter has a high efficiency rating of 89%, so you're assured of top-notch productivity and minimal energy loss to heat.
