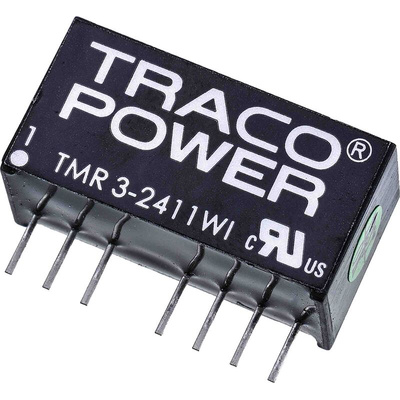

TMR 3-2411WI, TRACOPOWER TMR 3WI DC-DC Converter, 5V dc/ 600mA Output, 9 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, SIP8 Package, 80% Conversion Efficiency - TMR 3WI Series - TMR 3-2411WI

Dial down your appliance's power source with this DC-DC converter from Traco Power. It switches input voltages between 9 and 36V DC to a 5V DC output, settling the differences between an electrical supply and your gear to get processes running smoothly. By converting around 80% of its input loads, the device minimises waste to keep its system energy-efficient. Preparation passes in a flash thanks to the unit's short 30ms start-up time. As it comes with automatic short-circuit protection, the product blocks out damage from power surges to bounce back right away.

Features & Benefits

• Voltage setting accuracy of ±1%, so it sends out the power its hardware needs every time
• Insulating plastic and silicone body to keep fingers away from hazardous loads
• Maximum ripple voltage of 30mV, cutting out disruption from electrical noise
• Handles operating temperatures between -40°C and +85°C to push through tough industrial conditions

Applications

• Battery-powered equipment
• Telecommunications
• Industrial automation

How do I mount this converter to my circuit board?

Mount the unit by its through-hole mounting, slotting it into drilled holes on your PCB and then soldering the pins for a quick and secure installation.
