TMV 2412D, TRACOPOWER TMV DC-DC Converter, ±12V dc/ ±40mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 3kV Isolation Voltage, 79% Efficiency - TMV Series - TMV 2412D

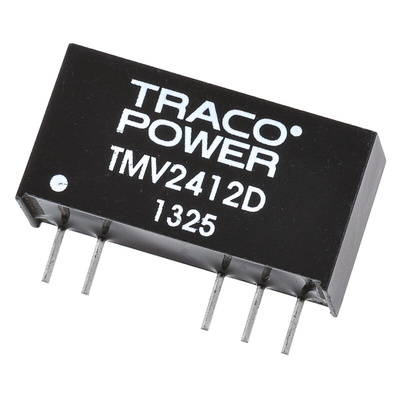

Need a space-saving power supply? This compact DC-DC converter from Traco Power works a treat on crowded PCBs. It measures just 19.5 (L) x 7.1 (W) x 10.2mm (D) and needs only 1.2cm² installation room on your board. The unit turns inputs between 21.6 and 26.4V DC into a balanced 12V DC feed, giving your system the energy needed for reliable performance. The robust SIP-7 format keeps the working protected and able to perform without fault in temperatures between -40°C and +80°C. Mounting is done in a flash – just punch the pins through the holes on your board and solder them in place.

Features & Benefits

• Internal filter supports EN 55032 Class A immunity against electromagnetic and radio frequency interferences
• 1W power rating for energy efficiency
• Plastic housing insulates live components for electrical safety

Applications

• Testing instruments
• Consumer electronics
• Telecommunications networks
• Automated pay points
• Medical devices

How many circuits can I run through this DC-DC converter?

Thanks to its dual outputs, this unit handles two circuits at once to save even more board space.

How heavy is the unit?

It's a lightweight component that weighs only 2.6g, so puts minimal strain on your PCB.
