TMV 1212EN, TRACOPOWER TMV EN DC-DC Converter, 12V dc/ 80mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp, Преобразователь

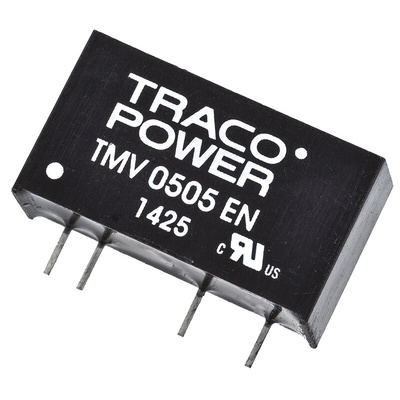

Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMV-EN Series

The Traco TMV-EN Series is a family of 1W single/dual output semi-regulated DC/DC converters with an ultra- miniature design and high input/output isolation of 6000Vdc. These semi-regulated DC/DC converters are ideal for use within power drivers where unregulated DC/DC converters do not meet the input voltage range at load change. The TMV-EN series is ideal for applications such as distributed power systems, mixed analog/digital subsystems, portable test equipments, local power networks and battery backed systems.

High isolation test voltage, 6kV peak
Reinforced insulation, rated for 250Vrms working voltage
Unregulated outputs
Short circuit protection, 1sec (limited)
UL94V-0 package material
Small footprint SIP-7 package

Note

De-rating 4% per °C above 70°C.
MTBF to MIL-HDBK-217F (25°C).

Standards

IEC/EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1-03

Approvals

CB, CSA
