TMV 1215DEN, TRACOPOWER TMV EN DC-DC Converter, ±15V dc/ ±30mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max, Преобразователь

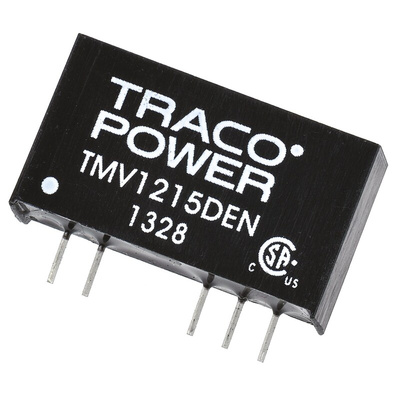

Traco Power DC-DC Converter, 75% Efficiency, SIP Format - TMV EN Series - TMV 1215DEN

Level out the voltage supply to your circuit using this DC-DC converter from Traco Power. It steps up an input voltage between 10.8 and 13.2V DC to a stable output of ±15V DC. High isolation of 6,000V DC between the input and output shields the system from electrical hazards. Dual outputs mean the unit pulls double duty by supplying power to a pair of devices at once. Thanks to integrated short-circuit protection with automatic recovery, you can trust it to pick up right where it left off if there's a glitch.

Features & Benefits

• Tough nickel iron pins feature tin plating for corrosion resistance
• Efficiency rating of 75% for minimal energy waste
• Start-up time of up to 270ms ensures rapid conversion
• Mean time between failures of 2 million hours for reliable performance

Applications

• Energy industry
• Consumer electronics
• Robotics
• HVAC systems

How accurate is this converter?

A voltage set accuracy of ±3% means you can be sure of minimal output errors with this converter.

Is the unit insulated?

Yes, this converter has robust non-conductive plastic housing that acts as an insulator. This means you can safely handle it without risking an electric shock.
