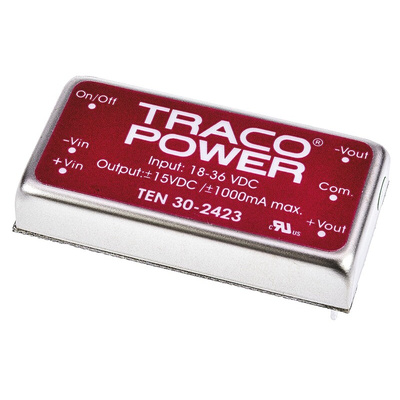

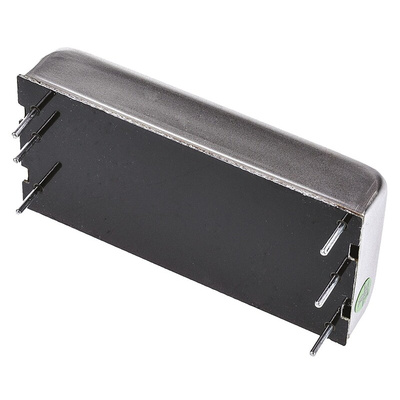

TEN 30-2423, TRACOPOWER TEN 30 DC-DC Converter, ±15V dc/ ±1A Output, 18 → 36 V dc Input, 30W, Through Hole, +85°C Max Temp, Преобразователь

Traco 30W Single/Dual Output High Power Density Regulated Isolated DC-DC Converter - TEN 30 Series

30W single/dual output high power density regulated isolated DC-DC converter modules with a wide input voltage range and encapsulated metal package. These single/dual output high power density regulated isolated DC-DC converter modules have a high efficiency which allows an operating temperature range of -40°C to +85°C. Typical applications for these isolated DC-DC converter modules include mobile equipment, instrumentation and distributed power architectures in communication and industrial electronics.

High power density, 25.4x50.8x10.2mm package
Wide 2:1 input voltage range
Regulated outputs
±10% adjustable output voltage by using external resistors (single output models only)
1.5kV input / output isolation
High efficiency up to 91%
No minimum load required
Input filter meets EN 55022 Class A
Remote On/Off
Over-temperature, over-voltage, over-load and short circuit protection
Shielded metal case with insulated baseplate
Industry standard pin-out

Note

Operating temperature is with derating of 4% per °C above 65°C.
MTBF to MIL-HDBK-217F (25°C).
Load regulation for dual output models is for balanced load.
For suitable heatsink see stock number 745-1234
For suitable common mode chokes see stock number 745-1222 (L1) and 745-1231 (L2)

Standards

EN 60950-1, UL 60950-1, IEC 60950-1

Traco Power DC-DC Converter, Dual Output, 90% Efficiency - TEN 30 Series - TEN 30-2423

Bring your DC power supply in line with the needs of your system with this DC-DC converter from Traco Power. To deliver power that's smooth and steady, it steps down input voltages between 18 and 36V DC to a standard output of ±15V DC. Serving as a middle ground between inputs and outputs, this unit helps to keep the two sources apart, preventing electrical hazards. Demanding industrial conditions won't faze this converter, thanks to its wide operating temperature range between -40°C and +85°C.

Features & Benefits

• Resistance to shock and vibration for durability in harsh settings
• Nickel-plated copper casing resists corrosion in damp environments
• Industry-standard pin-out fits into your existing board
• Efficiency rating of 90% for minimal heat waste
• Power rating of 30W to support high-power electrical systems

Applications

• Computer peripherals
• Robotics systems
• Lighting control
• Audio-visual devices

What protective features does this converter have?

This converter comes with short-circuit and overvoltage protection, so it stands up to current surges in your circuit. For added durability, built-in overtemperature protection keeps it stable even when the heat is on.
