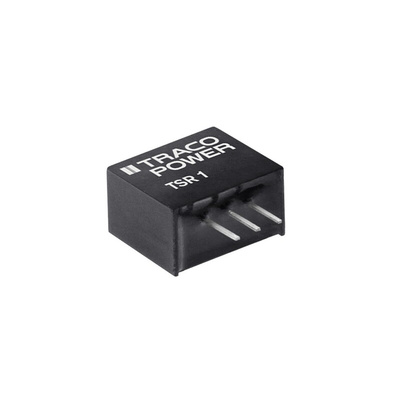

TSR 1-2433, TRACOPOWER Switching Regulator, Through Hole, 3.3V dc Output Voltage, 4.75 → 36V dc Input Voltage, 1A Output, Импульсные стабилизаторы

Traco Power Switching Regulator, Short-Circuit Protected, 1A Maximum Output Current - TSR 1 Series - TSR 1-2433

Cut down on excess voltage in your electrical circuit using this switching regulator from Traco Power. It adjusts a broad input voltage range between 4.75 and 36V DC to a smooth level of 3.3V DC. Want to bring your old devices up to speed with new tech? This unit is pin-compatible with LMxx linear regulators, so you can use it to upgrade your legacy equipment. With the built-in pins in its housing, it's a cinch to mount. All you need to do is solder it to the through-holes on your PCB.

Features & Benefits

• Short-circuit protected to stand up to electrical hazards
• Mean time between failures of 5,350,000h for long-term performance
• Start-up rise time of 2ms for rapid conversions
• Low ripple and noise of 50mV Pk-Pk for reliably smooth outputs

Applications

• Communications equipment
• Game consoles
• Consumer electronics

How efficient is this switching regulator?

An efficiency rating up to 91% indicates the regulator releases minimal heat during the conversion process. This means you won't need to add a heatsink to your setup, saving you space.
