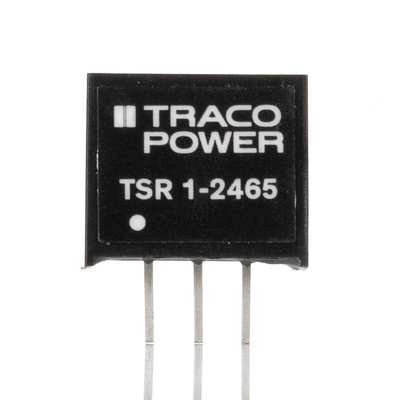

TSR 1-2465, TRACOPOWER Switching Regulator, Through Hole, 6.5V dc Output Voltage, 9 → 36V dc Input Voltage, 1A Output, Импульсные стабилизаторы

Traco Power Switching Regulator, SIP3 Format, ±0.2% Line Regulation - TSR 1 Series - TSR 1-2465

Need a fuss-free way to alter direct current in your setup? Choose this switching regulator from Traco Power for the job. It's a versatile choice that accepts an input voltage range between 9 and 36V DC and transforms it into a consistent 6.5V DC to power your equipment. Low ripple and noise of 50mVp-p ensures stable performance, preventing interference from getting the better of your system. As the unit's compatible with through-hole mounting, you can count on a vibration-resistant connection and mechanical stability on your PCB.

Features & Benefits

• High mean time between failures of 25,710,000 hours indicates dependable long-term performance
• Compact dimensions of 11.7 (L) x 7.55 (W) x 10.1mm (D), so takes up minimal board space
• 93% efficiency means low heat generation and a cool-running setup

Applications

• Industrial automation
• R&D labs
• Medical equipment

How much does the regulator weigh?

The unit weighs in at just 1.9g, so it doesn't add excess load to your setup.

Does this component perform reliably in harsh industrial conditions?

Yes. This device performs without a hiccup in temperatures between -40°C and +85°C, so it's suitable for demanding installations.
